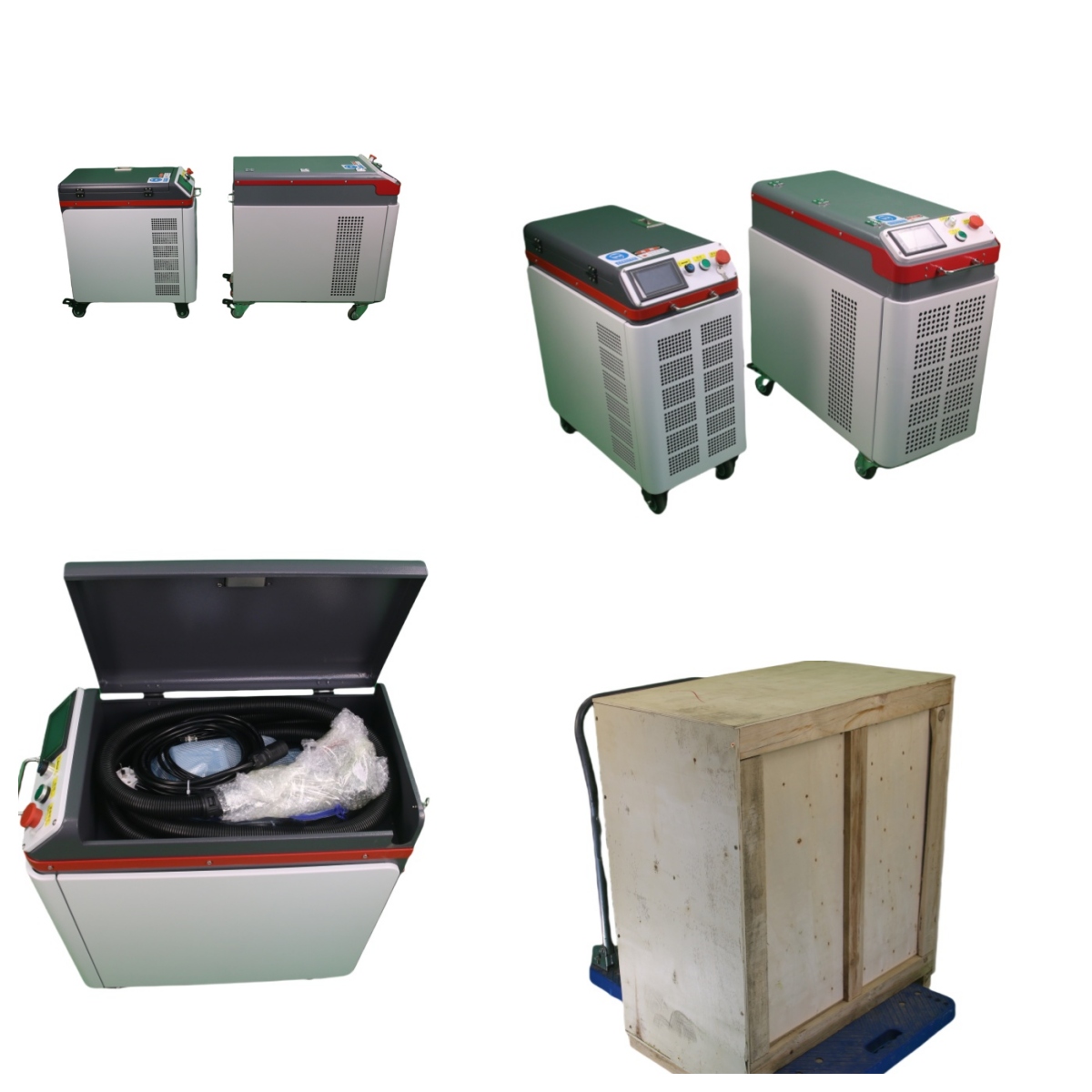

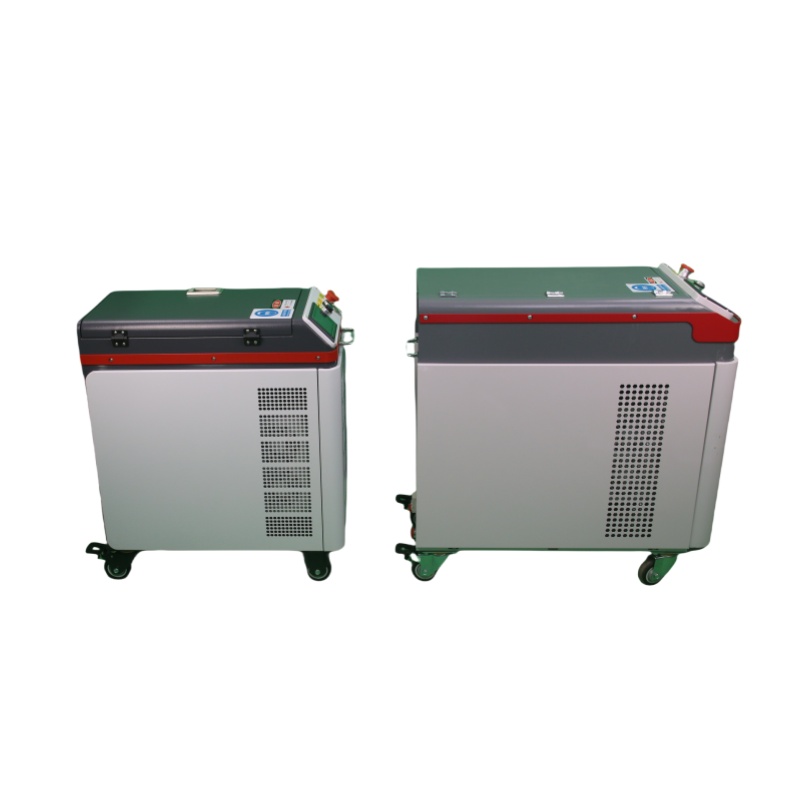

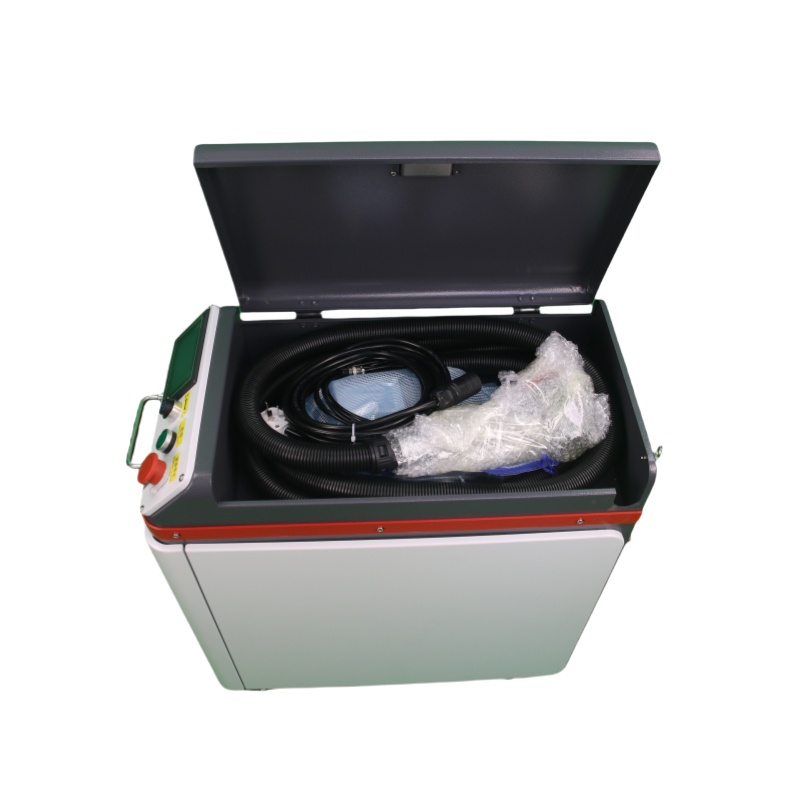

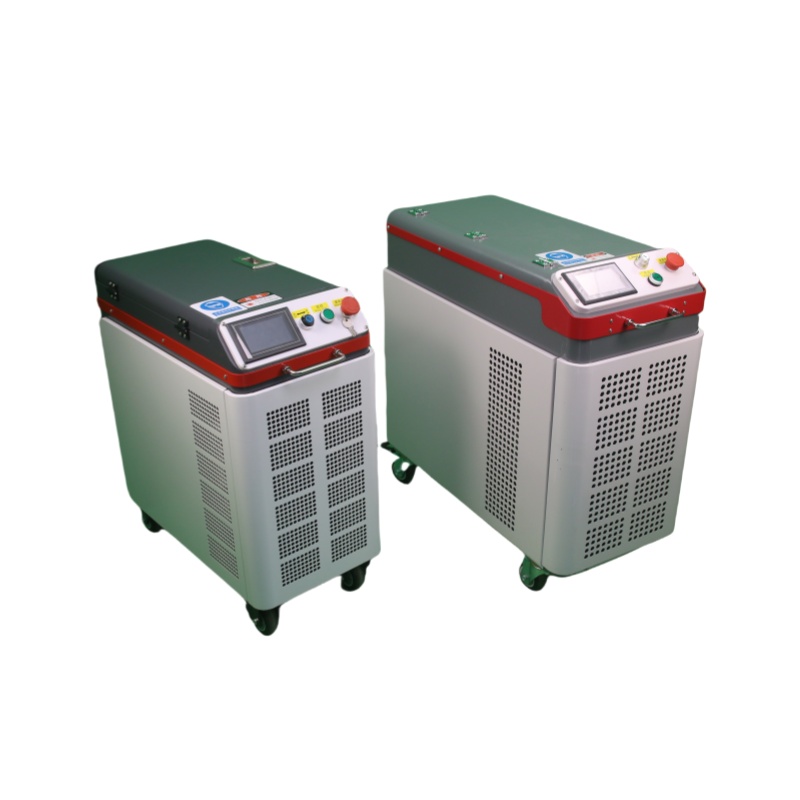

Pulsed Laser Cleaning Machine
Pulsed Laser Cleaning Machine is a high-tech device for efficient surface cleaning. With its rapid pulsing technology, it effectively removes contaminants from various materials without damage. This machine is versatile, environmentally friendly, and cost-effective, making it ideal for industries requiring precise and thorough cleaning. The Pulsed Laser Cleaning Machine ensures superior cleaning results and is suitable for a wide range of applications.
The Pulsed Laser Cleaning Machine is a cutting-edge equipment designed for efficient and precise surface cleaning. Using advanced pulsed laser technology, it effectively removes contaminants, rust, paint, and other unwanted substances from a variety of materials without causing damage to the surface itself. This machine is highly versatile and can be used in various industries, including manufacturing, automotive, aerospace, and more. Its key advantages include non-abrasive cleaning, eco-friendliness (no chemicals or abrasive materials needed), high precision, and cost-effectiveness. The Pulsed Laser Cleaning Machine provides superior cleaning results, increases productivity, and reduces downtime, making it an essential tool for achieving high-quality surface treatment.
Pulsed Laser Cleaning Machine:
Model: | HLC-P200W | HLC-P300W | HLC-P300W（water cooling） |
Operational Voltage: | 220V±10%、50/60Hz customisable：110V、50Hz alternating current | ||
Temperature: | 5℃～40℃ | ||
Humidity: | 30-85% Non-Condensing | ||
Power dissipation： | ≤1500W | ≤2000W | ≤4000W |
Power Output: | 200W | 300W | 300W |
Laser Type: | fiber | ||
Maximum Pulse Energy: | 1.5mJ/2mJ/5mJ | 1.5mJ/5mJ | 12.5mJ |
Pulse Frequency Range: | 1-4000kHz（Gradient adjustable） | 1-4000kHz（Gradient adjustable） | 1-4000kHz（Gradient adjustable） |
Pulse Width: | 2-500ns adjustable | 2-500ns adjustable | 2-500ns adjustable |
Output Power Instability: | ＜5% | ||
Wavelength: | 1064 nm | ||
Head Cable Length: | 5 m | 5 m | 5 m |
Cooling: | air cooling | water cooling | |
Focus Distance: | 210mm | 210mm | 210mm |
Scanning mode： | Dual-axis; supports 9 scanning modes | ||
Head Weight: | ≤0.9Kg | ≤1.25Kg | |
Size W x H x D: | about 629mm*341mm*734mm | about 982mm*458mm*791mm | |
Box Dimensions | about 800mm*470mm*880mm | about 1130mm*580mm*1050mm | |
Entire Unit Weight: | about 52Kg | about 135Kg | |
Packed weight： | about 67Kg | about 165Kg | |
Operation Mode: | Handheld/Automation | ||
Safety Class: | IV level | ||
Frequently Asked Questions (FAQ)
1. What cleaning modes does your system offer?
Single-axis cleaning head: Basic straight-line cleaning.
Dual-axis cleaning head: Advanced 6-mode cleaning, including straight line, spiral, rectangle, circle, rectangle fill, and circle fill patterns.
2. Is the software available in multiple languages?
Yes! Our interface supports 8 languages, including English, Chinese, and Russian, ensuring ease of use worldwide.
3. Can your system handle cleaning widths over 300mm?
Absolutely. For ultra-wide cleaning (up to 750mm), we recommend our dual-axis ultra-wide cleaning head, designed for large-surface applications.
Application Areas
