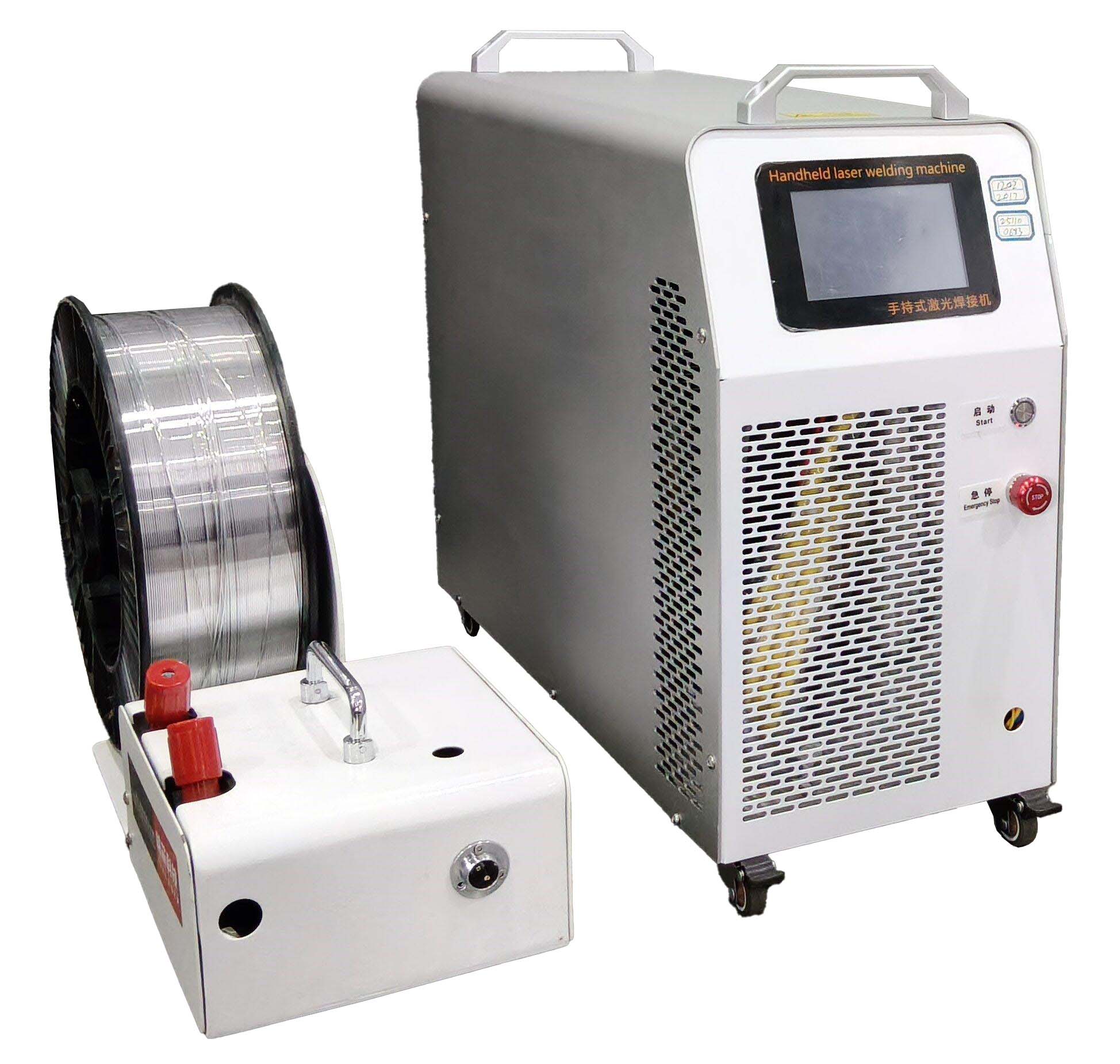

F Series Air-Cooled Handheld Laser Welding Machine
The F-series air-cooled handheld laser welding machines range in weight from 27.8 to 58 kilograms and are ready to use immediately with a standard 220V household power supply.
In terms of efficiency and quality, their welding speed can reach 3 to 5 times that of traditional TIG welding. They feature built-in oscillation welding and intelligent process parameters, resulting in a small heat-affected zone and minimal workpiece deformation.
Furthermore, the F-series air-cooled handheld laser welding machines offer exceptional material compatibility and multifunctional integration, enabling stable welding of various metal materials including carbon steel, stainless steel, high-strength steel, galvanized sheet metal, corrugated sheet metal, aluminum alloys, magnesium alloys, and titanium alloys.
The F Series Air-Cooled Handheld Laser Welding Machine is a portable laser welding device featuring a lightweight, integrated design that tightly packs the laser source, control system, and air-cooling module into a compact chassis. Combining industrial-grade welding performance with flexible operation, it is an ideal choice for small-scale processing, on-site repairs, and precision manufacturing.
It can be deployed extremely quickly and features an industrial-grade LCD screen with simple touchscreen operation, enabling straightforward and efficient human-machine interaction. Suitable for rapid production line retrofits or mobile use, it is configured via software; once set up, it can be operated by regular staff, ensuring consistent product quality and easy integration into automated production lines.
Product Features:
· Carefully selected industrial-grade lasers with sufficient power and no exaggerated specifications
· Generous redundancy in laser chips ensures minimal power decay and excellent output power linearity
· Lightweight and portable, with both size and weight reduced to less than one-third of those of water-cooled lasers
· Industrial-grade forced-air cooling solution prevents the risk of internal condensation in the laser
· Capable of immediate operation at ambient temperatures ranging from -10 to 40°C, with no warm-up time required
· Equipped with multiple protective features, including alarms for abnormal gas pressure and incorrect input voltage connection
· Industrial-grade LCD screen with intuitive touchscreen operation for simple and efficient human-machine interaction
· Stable and reliable handheld laser welding gun system solution, tailored to frontline operational needs
· Features continuous and pulsed modes with a high aspect ratio, suitable for heat conduction welding of thin sheets
· Suitable materials: carbon steel, stainless steel, high-strength steel, galvanized sheet metal, corrugated sheet metal, aluminum alloys, magnesium alloys, titanium alloys, and other metal materials
· Suitable industries: automotive components, two- and three-wheeled vehicles, photovoltaics, energy storage, sheet metal fabrication, and other applications with diverse welding stations and complex processes

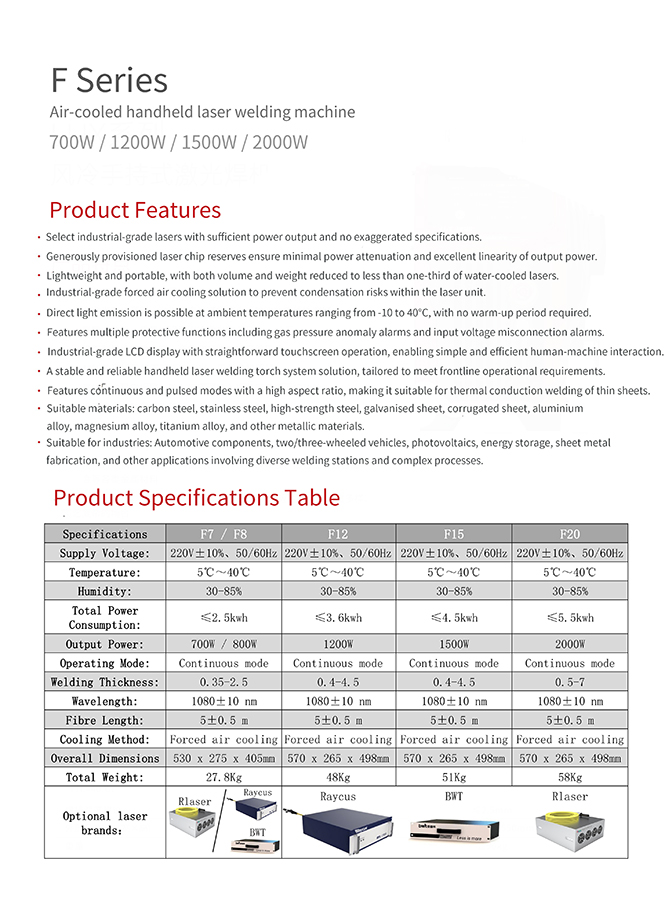

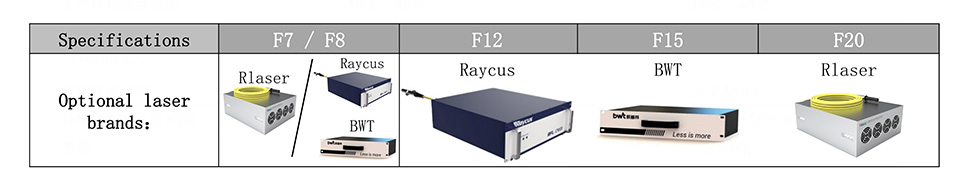

Specifications | F7 / F8 | F12 | F15 | F20 |
Supply Voltage: | 220V±10%、50/60Hz | 220V±10%、50/60Hz | 220V±10%、50/60Hz | 220V±10%、50/60Hz |
Temperature: | 5℃～40℃ | 5℃～40℃ | 5℃～40℃ | 5℃～40℃ |
Humidity: | 30-85% | 30-85% | 30-85% | 30-85% |
Total Power Consumption: | ≤2.5kwh | ≤3.6kwh | ≤4.5kwh | ≤5.5kwh |
Output Power: | 700W / 800W | 1200W | 1500W | 2000W |
Operating Mode: | Continuous mode | Continuous mode | Continuous mode | Continuous mode |
Welding Thickness: | 0.35-2.5 | 0.4-4.5 | 0.4-4.5 | 0.5-7 |
Wavelength: | 1080±10 nm | 1080±10 nm | 1080±10 nm | 1080±10 nm |
Fibre Length: | 5±0.5 m | 5±0.5 m | 5±0.5 m | 5±0.5 m |
Cooling Method: | Forced air cooling | Forced air cooling | Forced air cooling | Forced air cooling |
Overall Dimensions | 530 x 275 x 405mm | 570 x 265 x 498mm | 570 x 265 x 498mm | 570 x 265 x 498mm |
Total Weight: | 27.8Kg | 48Kg | 51Kg | 58Kg |
Remote, non-contact processing using a laser beam eliminates the wear issues associated with electrodes and welding wire, and prevents physical damage to precision workpieces caused by contact.

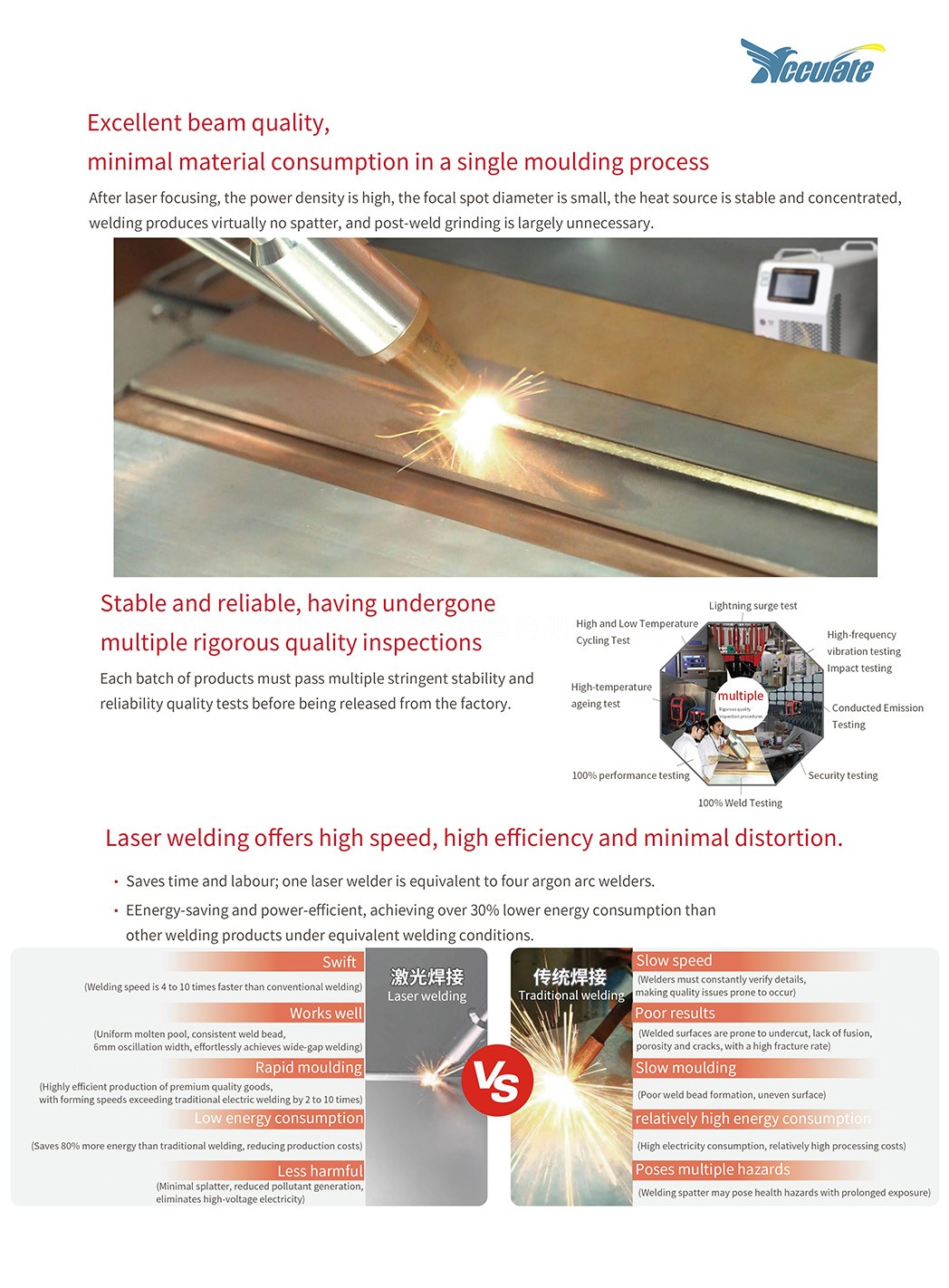

When the laser is focused, it produces high power density and a small spot diameter, with a stable, concentrated heat source. Welding is performed with virtually no spatter, and post-welding grinding is generally unnecessary. This process enables the welding of thin sheets and precision parts with minimal distortion, ensuring the dimensional accuracy and aesthetic quality of the products.

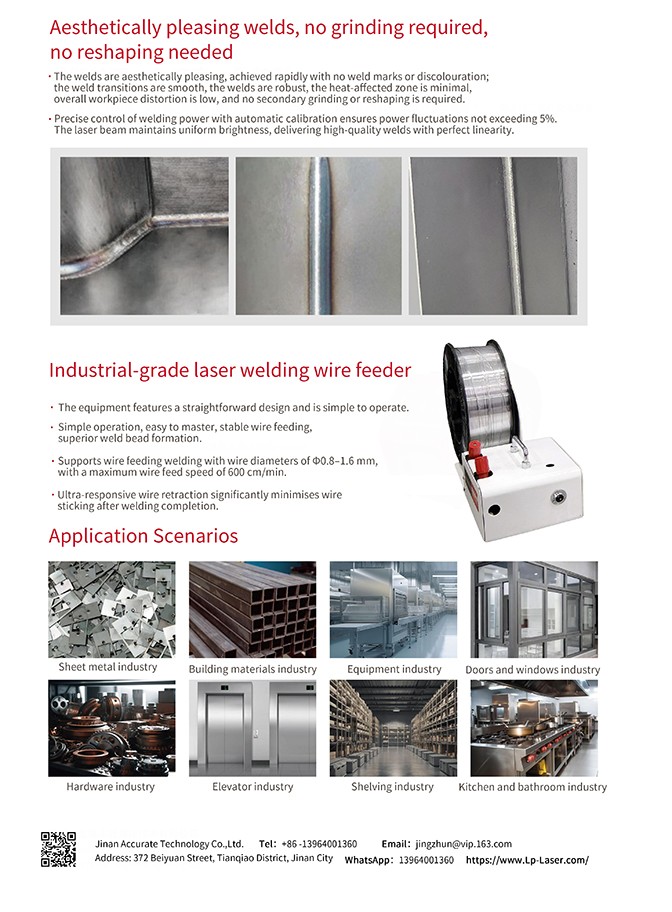

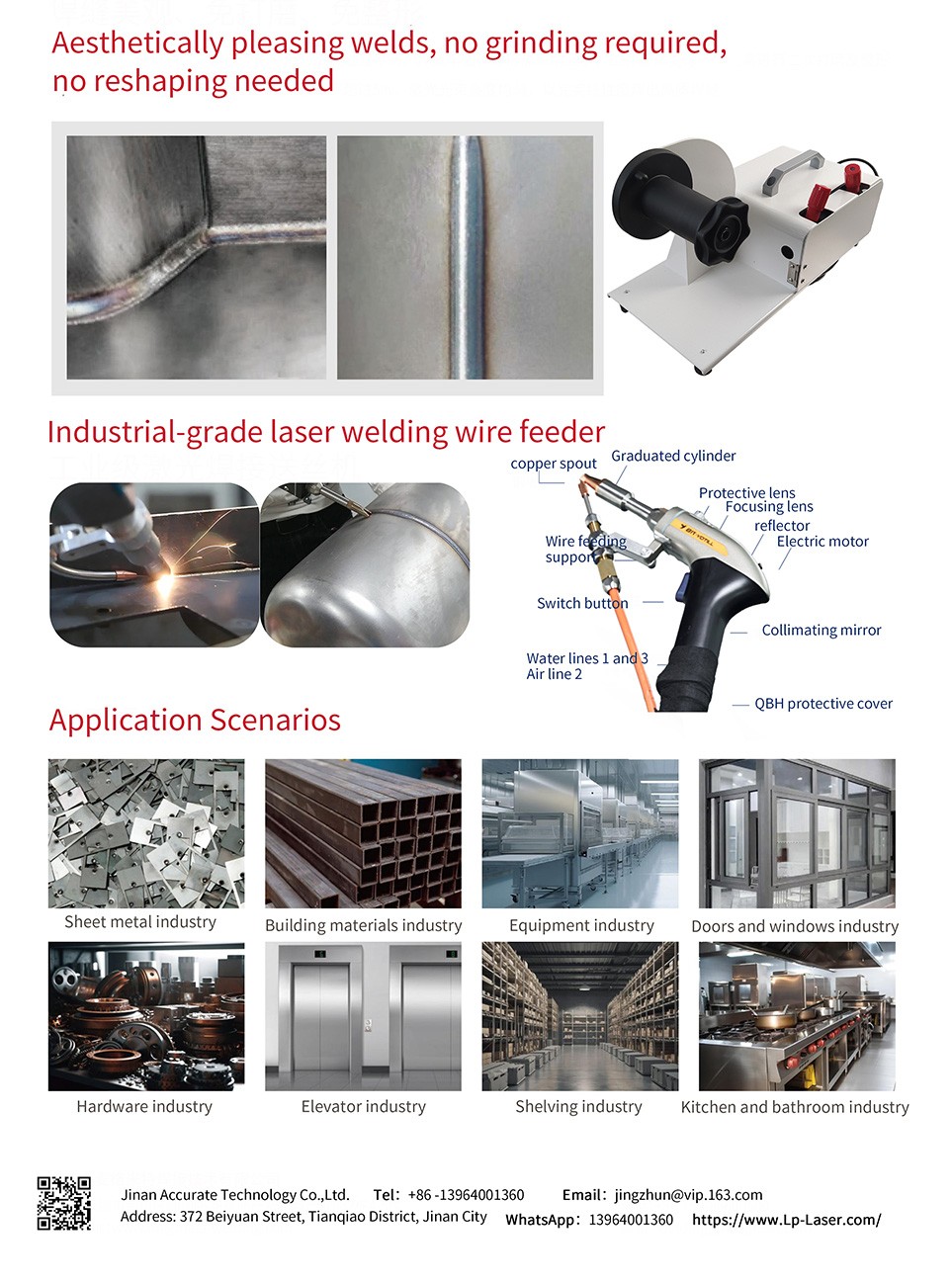

Aesthetically Pleasing Welds—No Grinding or Trimming Required
· Aesthetically pleasing welds; fast, with no weld marks or discoloration; smooth weld transitions; strong welds; minimal heat-affected zone; minimal overall workpiece distortion; no secondary grinding or trimming required
· Precise control and automatic calibration of welding power, with power fluctuations not exceeding 5%; uniform laser beam brightness ensures high-quality welds with perfect linearity

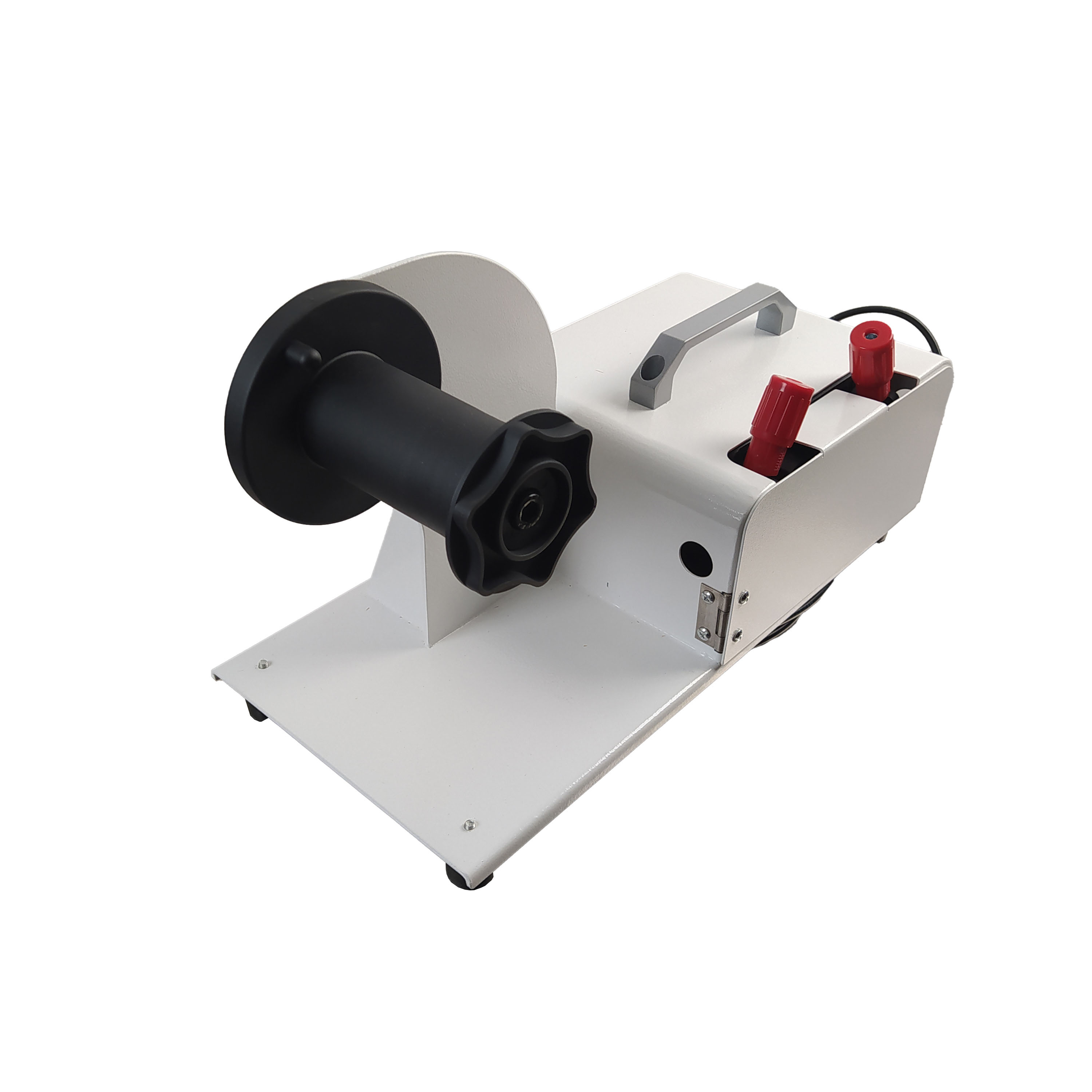

Built-in Wire Feeder
· Simple equipment design for easy operation
· Simple and intuitive controls; stable wire feeding ensures superior weld bead formation
· Supports wire feeding for diameters of 0.8–1.6 mm, with a feed speed of up to 600 cm/min
· Ultra-fast wire retraction significantly reduces wire sticking after welding
