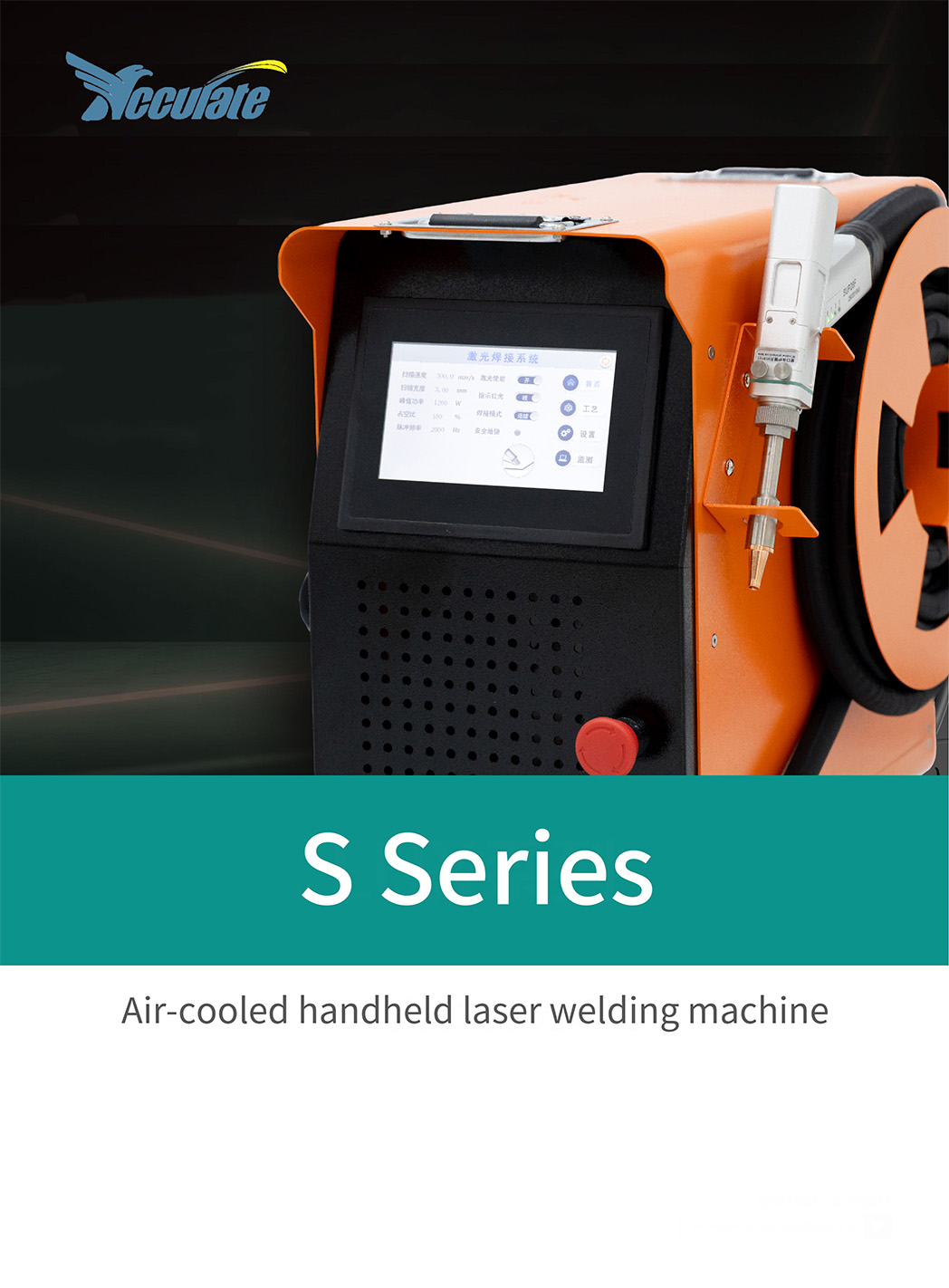

S Series Air-Cooled Handheld Laser Welders
The core advantages of air-cooled laser welding machines lie in their high efficiency and energy savings. Their welding speed can reach 3 to 10 times that of traditional TIG welding, and since the entire machine is maintenance-free and requires no coolant, operating costs are significantly reduced. The equipment uses air cooling, which reduces its size and weight, allowing it to be easily moved to any workstation for immediate use. Thanks to extremely low heat input, air-cooled lasers result in minimal workpiece deformation, produce clean, spatter-free welds, and create a very small heat-affected zone, virtually eliminating the need for grinding. With extremely fast setup times, they are ideal for rapid production line retrofits or mobile applications, and are capable of welding highly reflective materials such as copper and aluminum.
The S Series air-cooled handheld laser welder is a portable laser welding device featuring a lightweight, integrated design that tightly packs the laser source, control system, and air-cooling module into a compact chassis. Combining industrial-grade welding performance with flexible operation, it is an ideal choice for small-scale processing, on-site repairs, and precision manufacturing.
It can be deployed extremely quickly and features an industrial-grade LCD screen with simple touchscreen operation, enabling straightforward and efficient human-machine interaction. Suitable for rapid production line retrofits or mobile use, it is configured via software; once set up, it can be operated by regular staff, ensuring consistent product quality and easy integration into automated production lines. Translated with DeepL.com (free version)
Product Features:
· Carefully selected industrial-grade lasers with sufficient power and no exaggerated specifications
· Generous redundancy in laser chips ensures minimal power decay and excellent output power linearity
· Lightweight and portable, with both size and weight reduced to less than one-third of those of water-cooled lasers
· Industrial-grade forced-air cooling solution eliminates the risk of internal condensation in the laser
· Capable of immediate operation at ambient temperatures ranging from -10 to 40°C, with no warm-up time required
· Equipped with multiple protective features, including alarms for abnormal gas pressure and incorrect input voltage connection
· Industrial-grade LCD screen with intuitive touchscreen operation for simple and efficient human-machine interaction
· Stable and reliable handheld laser welding gun system solution, tailored to frontline operational needs
· Features continuous and pulsed modes with a high aspect ratio, suitable for heat conduction welding of thin sheets
· Suitable Materials: Carbon steel, stainless steel, high-strength steel, galvanized sheet metal, corrugated sheet metal, aluminum alloys, magnesium alloys, titanium alloys, and other types of metal materials
· Suitable Industries: Automotive parts, two- and three-wheeled vehicles, photovoltaics, energy storage, sheet metal fabrication, and other applications involving diverse welding stations and complex processes
Specifications | S600 | S900 | S1200 | S1500 | S2000 |
Supply Voltage: | 220V±10%、50/60Hz | 220V±10%、50/60Hz | 220V±10%、50/60Hz | 220V±10%、50/60Hz | 220V±10%、50/60Hz |
Temperature: | 5℃～40℃ | 5℃～40℃ | 5℃～40℃ | 5℃～40℃ | 5℃～40℃ |
Humidity: | 30-85% | 30-85% | 30-85% | 30-85% | 30-85% |
Total Power Consumption: | ≤2kwh | ≤2.9kwh | ≤3.6kwh | ≤4.5kwh | ≤5.68kwh |
Output Power: | 600W | 900W | 1200W | 1500W | 2000W |
Operating Mode: | Continuous mode | Continuous mode | Continuous mode | Continuous mode | Continuous mode |
Welding Thickness: | 0.35-2 | 0.35-3 | 0.4-4.5 | 0.4-4.5 | 0.5-7 |
Wavelength: | 1080±10 nm | 1080±10 nm | 1080±10 nm | 1080±10 nm | 1080±10 nm |
Fibre Length: | 5±0.5 m | 5±0.5 m | 5±0.5 m | 5±0.5 m | 5±0.5 m |
Cooling Method: | Forced air cooling | Forced air cooling | Forced air cooling | Forced air cooling | Forced air cooling |
Overall Dimensions | 520 x 280 x 410mm | 520 x 280 x 410mm | 540 x 350 x 530mm | 540 x 350 x 530mm | 560 x 350 x 560mm |
Packaging box | 760 x 600 x 825mm | 760 x 600 x 825mm | 760 x 600 x 825mm | 760 x 600 x 825mm | 760 x 600 x 825mm |
Total Weight: | 38Kg | 44Kg | 43Kg | 45Kg | 50Kg |
Remote, non-contact processing using a laser beam eliminates the wear and tear associated with electrodes and welding wire, and prevents physical damage to precision workpieces caused by contact.

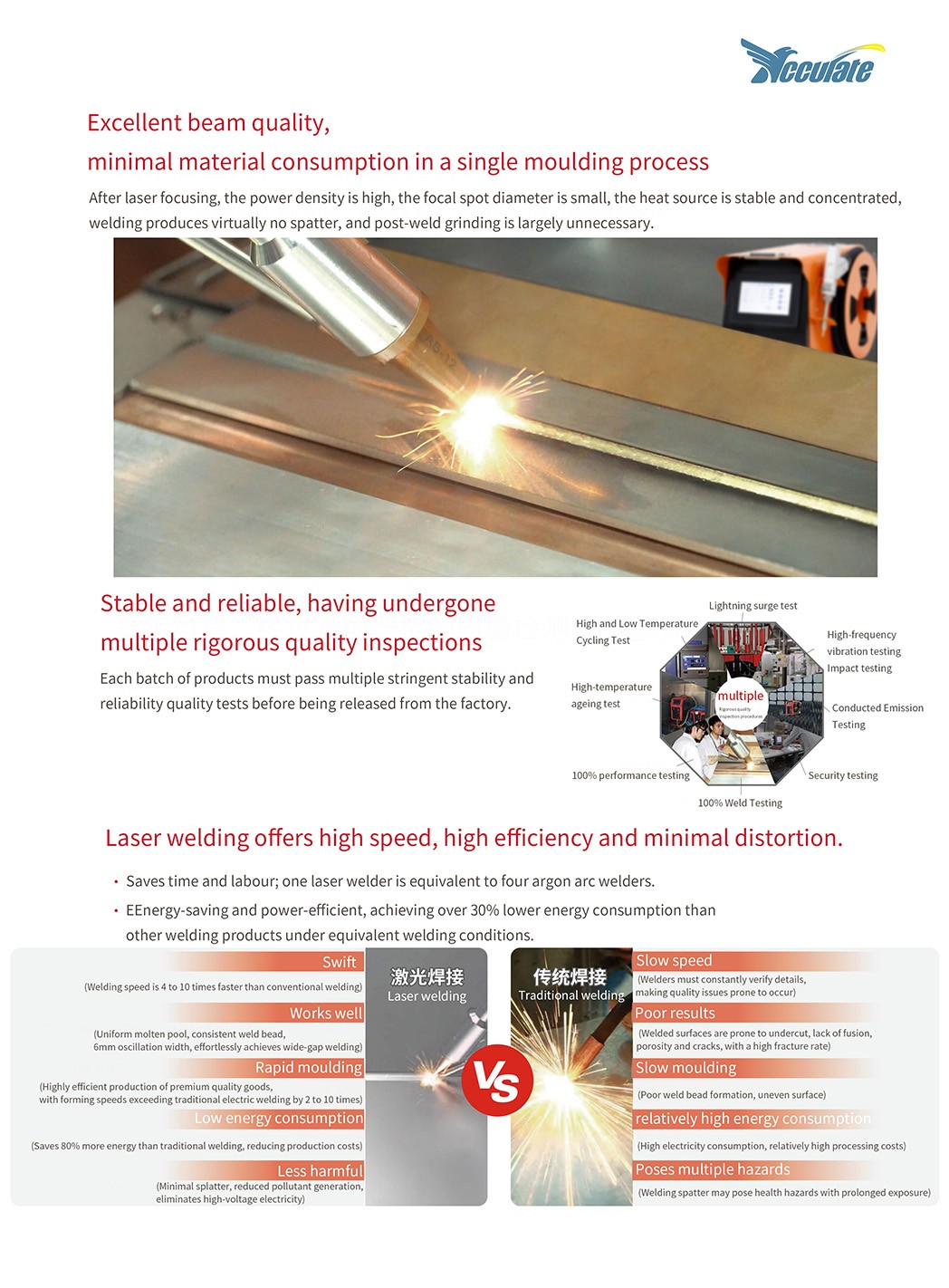

When the laser is focused, it produces high power density and a small spot diameter, resulting in a stable, concentrated heat source. Welding is performed with virtually no spatter, and post-welding grinding is generally unnecessary. This process enables the welding of thin sheets and precision parts with minimal distortion, ensuring both dimensional accuracy and aesthetic quality of the product.

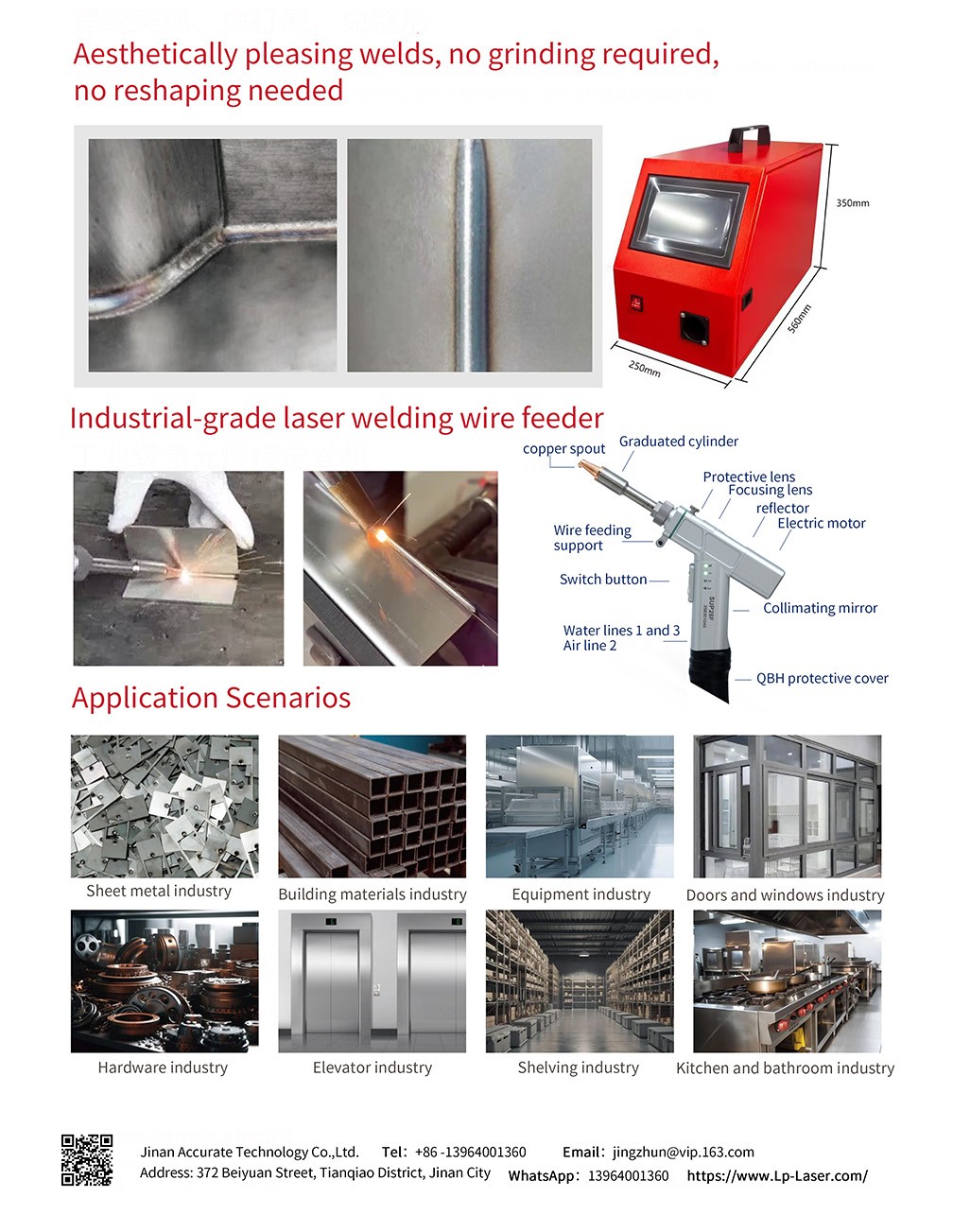

Aesthetically Pleasing Welds—No Grinding or Trimming Required
· Aesthetically pleasing welds; fast, with no weld marks or discoloration; smooth weld transitions; strong welds; minimal heat-affected zone; minimal overall workpiece deformation; no secondary grinding or trimming required
· Precise control and automatic calibration of welding power, with power fluctuations not exceeding 5%; uniform laser beam brightness ensures high-quality welds with perfect linearity
Industrial-Grade Laser Welding Wire Feeder
· Large 7-inch LCD panel for convenient operation
· Simple and intuitive controls; stable wire feeding ensures superior weld bead formation
· Supports wire feeding for diameters of 0.8–1.6 mm, with a feed speed of up to 600 cm/min
· Ultra-fast wire retraction significantly reduces wire sticking after welding
