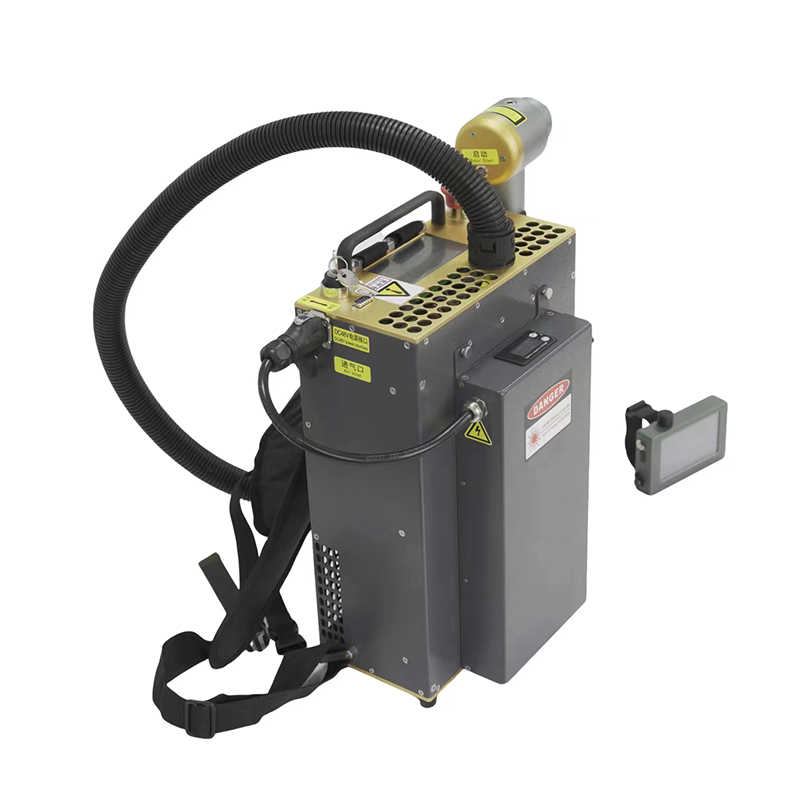

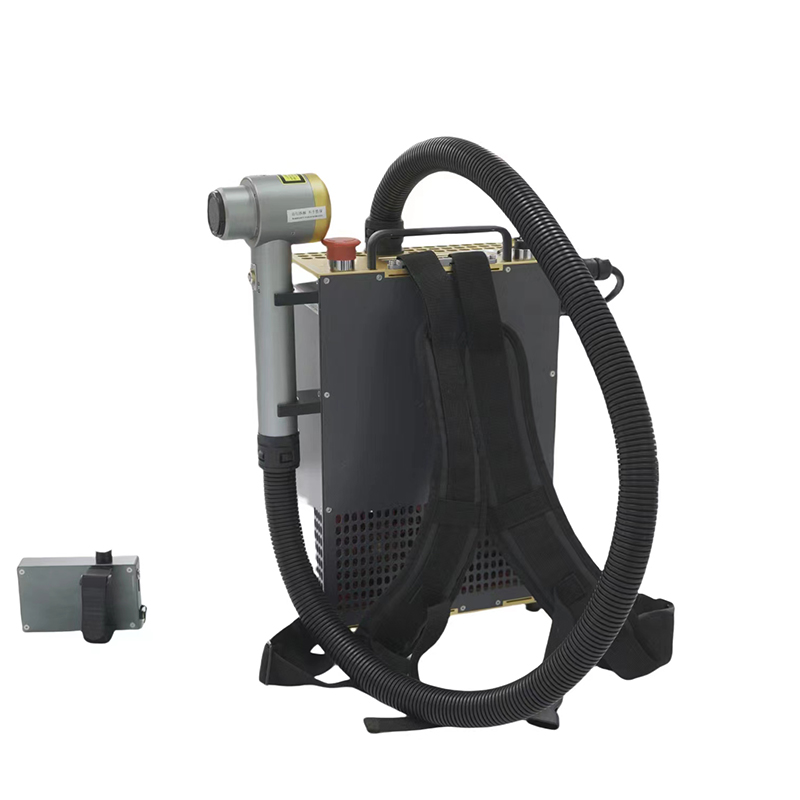

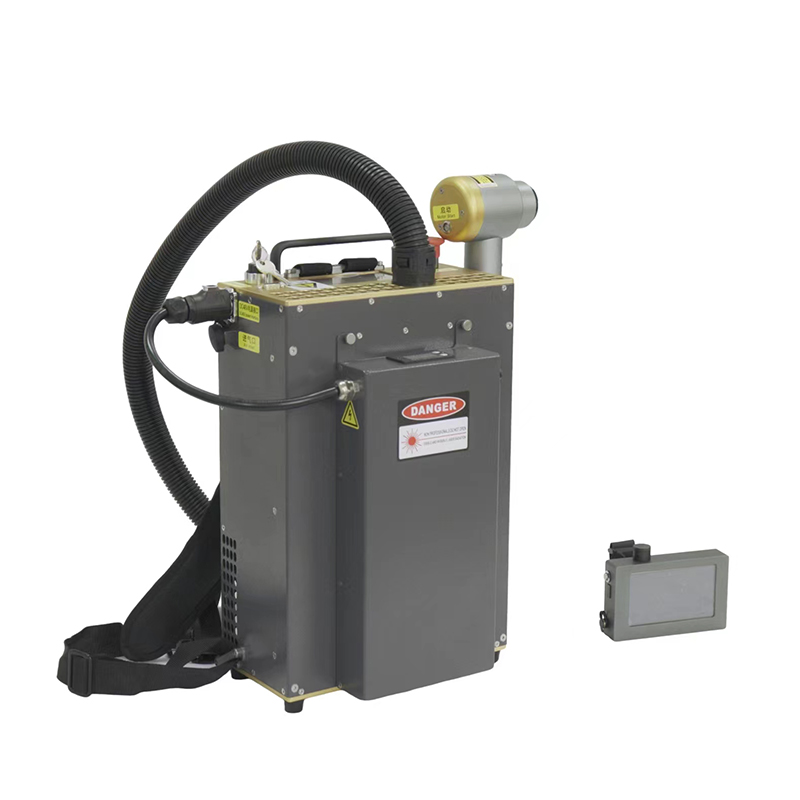

Cheap Backpack Laser Cleaning Machine
1. Efficient cleaning : knapsack laser cleaning machine uses high frequency short pulse laser for cleaning, which can complete the removal of large area of oil pollution in a short time, significantly improving the cleaning efficiency.
2. Accurate cleaning : the equipment can precisely control the cleaning area and speed, to achieve non-contact, non-damage accurate cleaning, suitable for a variety of complex environments and sites .
3. Environmental protection and safety : there is no need to use chemical agents and cleaning agents in the cleaning process, which reduces environmental pollution and meets the requirements of green low-carbon and sustainable development .
4. Portable and light : backpack design makes the cleaning machine small size, light weight, easy to carry and operate, suitable for high altitude, narrow space, outdoor work and other complex environment .
5. Multi-functional application : suitable for oxidation layer removal, rust removal, old paint removal, dust floating rust removal, welding treatment, mold surface cleaning and other application scenarios, widely used in heavy industry, automobile, electronics, mold, petrochemical, aerospace and other fields .
6. Easy operation : backpack laser cleaning machine is simple to operate, no complex installation, reduce the preparation time, improve work efficiency .
7. Advanced technology : adopts two-dimensional galvanometer structure and multi-graph cleaning scheme, supports the functions of parameter power-off saving and process parameter customized storage, improves the intelligence and flexibility of the equipment .
Our pulsed laser cleaners are suitable for customers who need efficient indoor and outdoor cleaning solutions in backpacks. This portable model is easy to transport and operate, allows seamless cleaning operation, and can be used anytime, anywhere, without the need for a power outlet. Equipped with JPT laser source, the cleaning effect is excellent, and the work efficiency is significantly improved. Minimizes damage to the surfaces of cabinets and furniture materials and meets the strict standards of high-end craftsmanship.
Model: | HLC-P100W-06D | HLC-P200W-06D | HLC-P300W-06D |
Strip Rate Per Hour: | 24 ft²/hour | ||
Operational Voltage: | 220V±10%、50/60Hz Optional battery, 80-90 minutes of continuous operation | ||
Temperature: | 5℃ ～40℃ | ||
Humidity: | 30-85% Non-Condensing | ||
Power dissipation： | ≤600W | ≤800W | ≤1100W |
Power Output: | 100W | 200W | 300W |
Laser Type: | Fibre | ||
Maximum Pulse Energy: | 1.7mJ | 2mJ（Optional 5mJ） | 2.0mJ（5mJ-15mJ available） |
Pulse Frequency Range: | 20-200kHz（Gradient adjustable） | 1-3000kHz(Gradient adjustable） | 1-3000kHz(Gradient adjustable） |
Pulse Width: | 150-190ns tunable | 13-500ns tunable | 13-500ns tunable |
Output Power Instability: | ＜5% | ||
Wavelength: | 1064 nm | ||
Head Cable Length: | 1.5 m | 1.5 m | 1.5 m |
Cooling: | Air cooling | ||
Focus Distance: | 160mm | 210mm | 210mm |
Scanning mode： | Dual-axis; supports 9 scanning modes | ||
Head Weight: | ≤0.9Kg | ||
Size W x H x D: | 213mm*123mm*339mm(Battery not included) | 268mm*135mm*445mm（Battery not included） | |
213mm*168mm*339m(Battery included) | 268mm*191.5mm*445mm（Battery included） | ||
Box Dimensions | About 860*840*340mm | ||
Entire Unit Weight: | About 8.5Kg（Battery not included） About 12Kg（Battery included） | About 12.5Kg（Battery not included） About 17Kg（Battery included） | About 13.47 Kg(Battery not included） About 18.08 Kg（Battery included） |
Packed weight： | About 42.1Kg（Battery not included） About 45.3Kg（Battery included） | About 49.9Kg（Battery not included） About 55.3Kg（Battery included） | About 51 Kg（Battery not included） About 56 Kg（Battery included） |
Operation Mode: | Handheld/Automation | ||
Safety Class: | Level IV | ||
