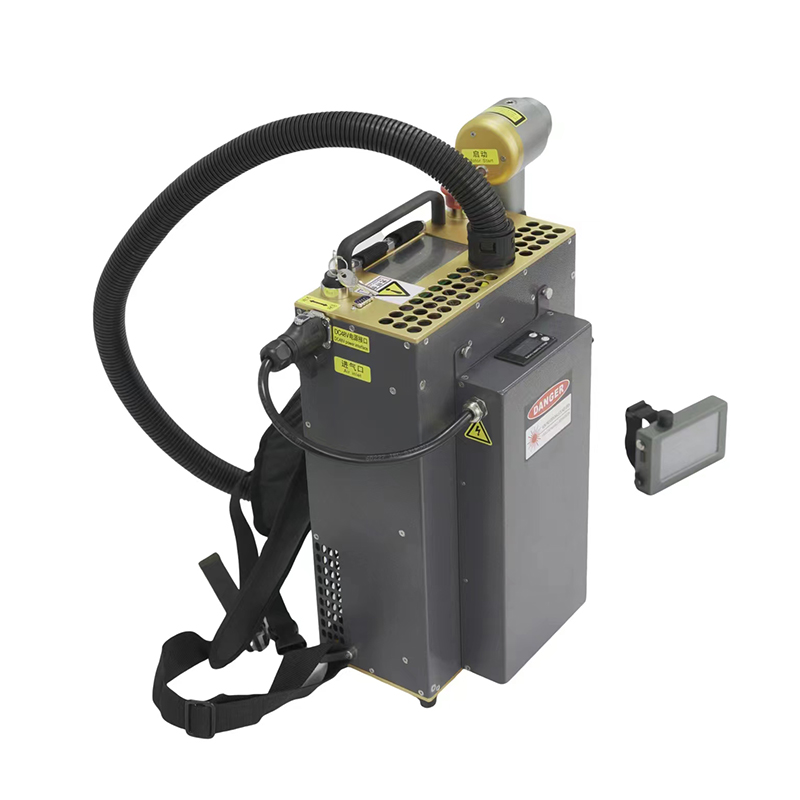

Portable Backpack Laser Cleaning Machine
Portable & Ergonomic Design
Lightweight backpack style enables easy operation in hard-to-reach areas, boosting on-site productivity.
Non-Abrasive & Non-Destructive
Laser cleaning preserves substrate integrity—no damage to metals, composites, or delicate surfaces.
Eco-Friendly & Chemical-Free
Zero wastewater, abrasives, or toxic chemicals. Reduce environmental impact and comply with green regulations.
High Efficiency & Low Cost
Up to 3x faster than traditional methods (sandblasting/chemical cleaning) with minimal maintenance.
Adjustable Parameters
Customize power (100W-500W options), frequency, and spot size for versatile applications.
Long Service Life
Robust fiber laser source ensures 100,000+ hours of operational durability.
Product introduction
Laser ray cleaning has applications beyond mold cleaning and is widely employed in the processing of various workpieces. As a modern alternative to traditional cleaning techniques, laser cleaning has gained popularity due to its numerous advantages.
Firstly, this innovative method eliminates the need for cleaning agents and the subsequent handling of waste materials. Consequently, it significantly reduces operating costs. Secondly, laser cleaning offers high precision, effectively safeguarding the surface integrity of the workpieces. Most crucially, it delivers outstanding cleaning results.
There are certain contaminants, such as various oxides, dust particles, and impurities generated by polymer lubricants, which are extremely challenging to remove using conventional methods. However, these substances can be rapidly evaporated by laser rays within just a few seconds. The surface cleaned by laser becomes highly suitable for subsequent processing operations, like laser welding.
| Model: | HLC-P100W-06DHLC | HLC-P200W-06D | HLC-P300W-06D |
| Strip Rate Per Hour: | 24 ft²/h | ||
| Operational Voltage: | 220V±10%、50/60Hz Optional battery, continuous operation 80-90 minutes | ||
| Temperature: | 5℃～40℃ | ||
| Humidity: | 30-85% Non-Condensing | ||
| Power dissipation： | ≤600W | ≤800W | ≤1100W |
| Power Output: | 100W | 200W | 300W |
| Laser Type: | Optical fiber | ||
| Maximum Pulse Energy: | 1.7mJ | 2mJ（selectable 5mJ） | 2.0mJ（5mJ-15mJselectable） |
| Pulse Frequency Range: | 20-200kHz Gradient adjustable | 1-3000kHz Gradient adjustable | 1-3000kHz Gradient adjustable |
| Pulse Width: | 150-190ns tunable | 13-500ns tunable | 13-500ns tunable |
| Output Power Instability: | ＜5% | ||
| Wavelength: | 1064 nm | ||
| Head Cable Length: | 1.5 m | ||
| Cooling: | Air cooling | ||
| Focus Distance: | 160mm | 210mm | 210mm |
| Scanning mode： | Dual axis; Nine scanning modes are supported | ||
| Head Weight: | ≤0.9Kg | ||
| Size W x H x D: | 213mm*123mm*339mm(Battery free) | 268mm*135mm*445mm(Battery free) | |
| 213mm*168mm*339m(Battery included) | 268mm*191.5mm*445mm(Battery included) | ||
| Box Dimensions: | about 860*840*340mm | ||
| Entire Unit Weight: | about 8.5Kg(Battery free) | about12.5Kg(Battery free) | about13.47 Kg(Battery free) |
| about 12Kg(Battery included) | about17Kg(Battery included) | about18.08 Kg(Battery included) | |
| Packed weight： | about 42.1Kg(Battery free) | about 49.9Kg(Battery free) | about 51 Kg(Battery free) |
| about 45.3Kg(Battery included) | about 55.3Kg(Battery included) | about 56 Kg(Battery included) | |
| Operation Mode: | Handheld/Automation | ||
| Safety Class: | Level IV | ||
