Cheap Pulsed Laser Cleaner
1. Efficient cleaning : pulsed laser cleaning machine can quickly remove surface dirt, rust, oxide, oil and dirt, high cleaning efficiency, especially suitable for high-speed cleaning .
2. Non-contact cleaning : Compared with traditional mechanical methods, laser cleaning is a non-contact cleaning process that will not wear or damage the surface and can maintain the original quality of the material .
3. Environmental protection : laser cleaning does not produce chemical waste or dust, reducing the pollution to the environment. There is usually no need to use chemical cleaning agents, with environmental advantages .
4. Accurate control : the parameters of laser cleaning can be accurately controlled through the automatic system to meet the cleaning requirements of different materials .
5. Low damage : in the process of laser cleaning, pollutants absorb energy gasification removal, or the substrate absorbs laser to produce thermal stress stripping of pollutants, the damage to the substrate material is minimal, and even no damage to the substrate .
6. Wide range of application : suitable for metal or glass surface coating layer removal, rapid paint removal, rust removal, removal of grease, resin, glue, dust, stains, production residue .
Laser cleaning machines are an efficient cleaning process that is more cost effective and safer than other traditional cleaning methods. It can remove resin, paint, oil, stains, dirt, rust, oxidation coating and so on from the surface of the object. Widely used in industrial fields, covering ships, steam repair, rubber mold, automotive industry, high-end machine tools, rail, environmental protection and other fields.

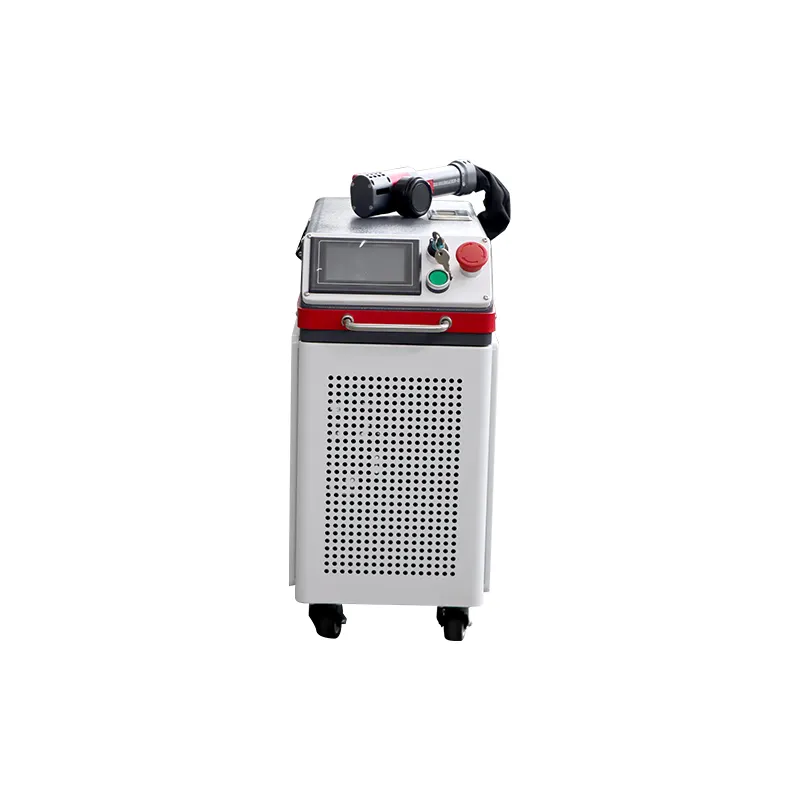

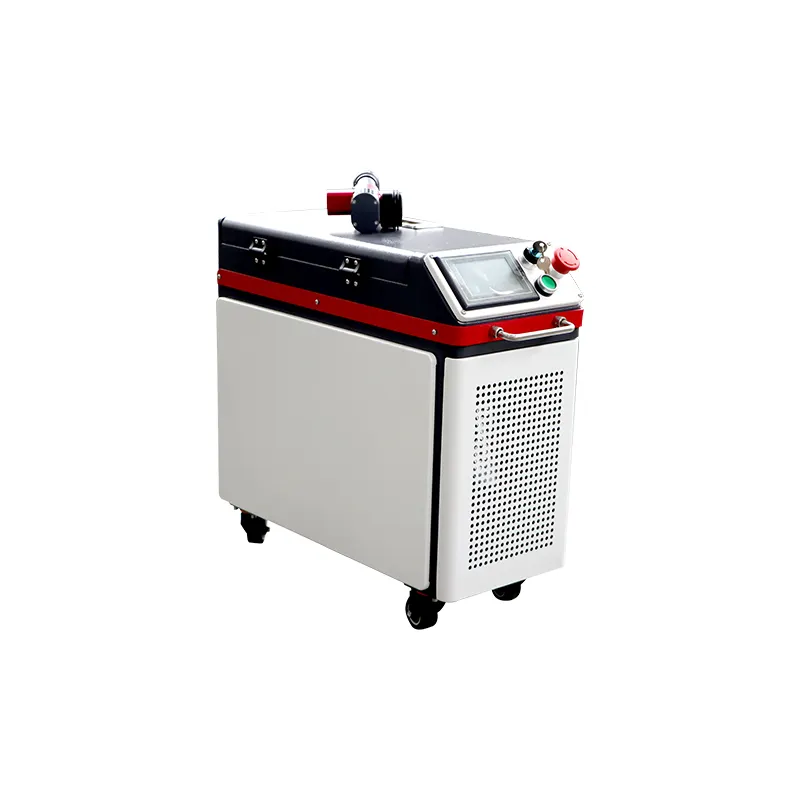

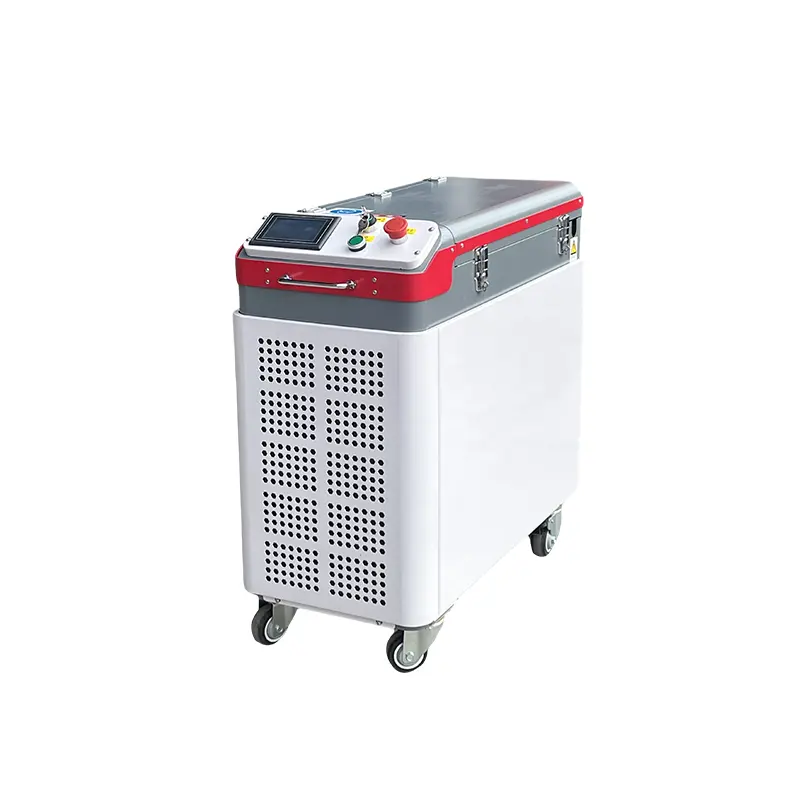

Pulsed Laser Cleaning Machine:
Model: | HLC-P200W | HLC-P300W | HLC-P300W（water cooling） |
Operational Voltage: | 220V±10%、50/60Hz customisable：110V、50Hzalternating current | ||
Temperature: | 5℃～40℃ | ||
Humidity: | 30-85% Non-Condensing | ||
Power dissipation： | ≤1500W | ≤2000W | ≤4000W |
Power Output: | 200W | 300W | 300W |
Laser Type: | fiber | ||
Maximum Pulse Energy: | 1.5mJ/2mJ/5mJ | 1.5mJ/5mJ | 12.5mJ |
Pulse Frequency Range: | 1-4000kHz（Gradient adjustable） | 1-4000kHz（Gradient adjustable） | 1-4000kHz（Gradient adjustable） |
Pulse Width: | 2-500ns adjustable | 2-500ns adjustable | 2-500ns adjustable |
Output Power Instability: | ＜5% | ||
Wavelength: | 1064 nm | ||
Head Cable Length: | 5 m | 5 m | 5 m |
Cooling: | air cooling | water cooling | |
Focus Distance: | 210mm | 210mm | 210mm |
Scanning mode： | Dual-axis; supports 9 scanning modes | ||
Head Weight: | ≤0.9Kg | ≤1.25Kg | |
Size W x H x D: | about 629mm*341mm*734mm | about 982mm*458mm*791mm | |
Box Dimensions | about 800mm*470mm*880mm | about 1130mm*580mm*1050mm | |
Entire Unit Weight: | about 52Kg | about 135Kg | |
Packed weight： | about 67Kg | about 165Kg | |
Operation Mode: | Handheld/Automation | ||
Safety Class: | IV级 | ||
