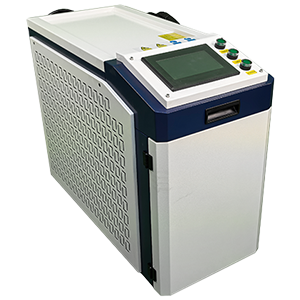

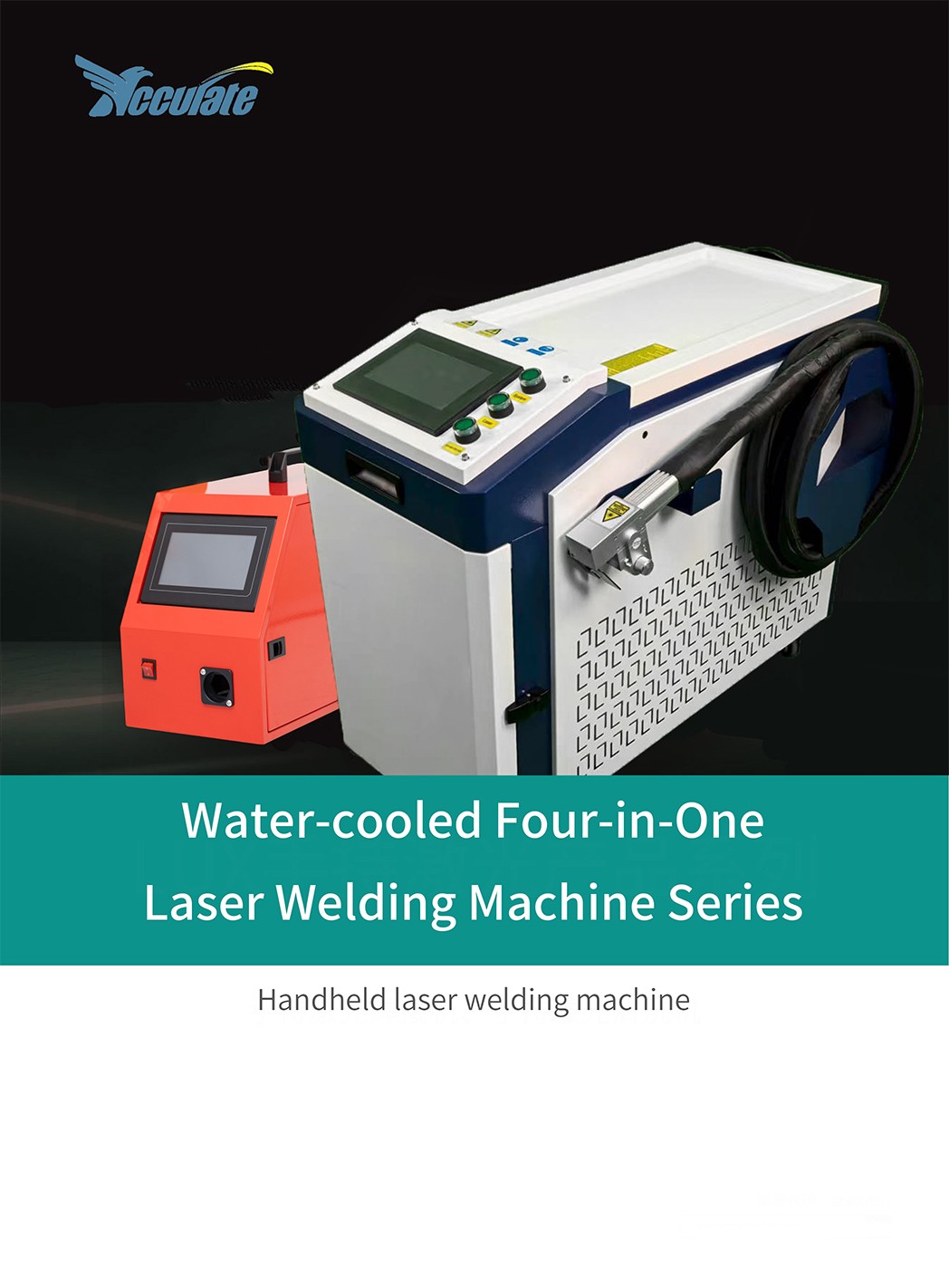

2000-Watt Water-Cooled 4-in-1 Laser Welding Machine

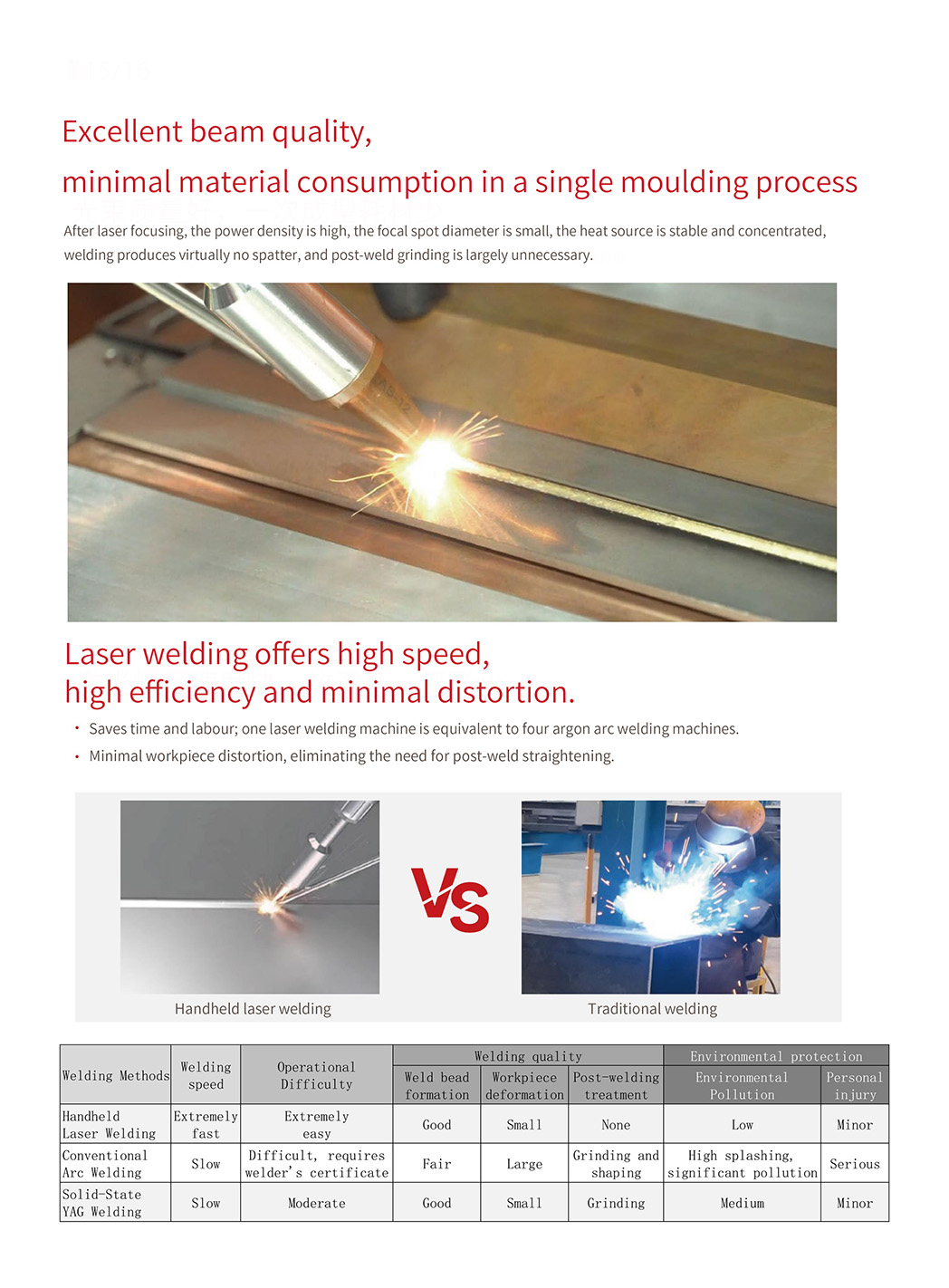

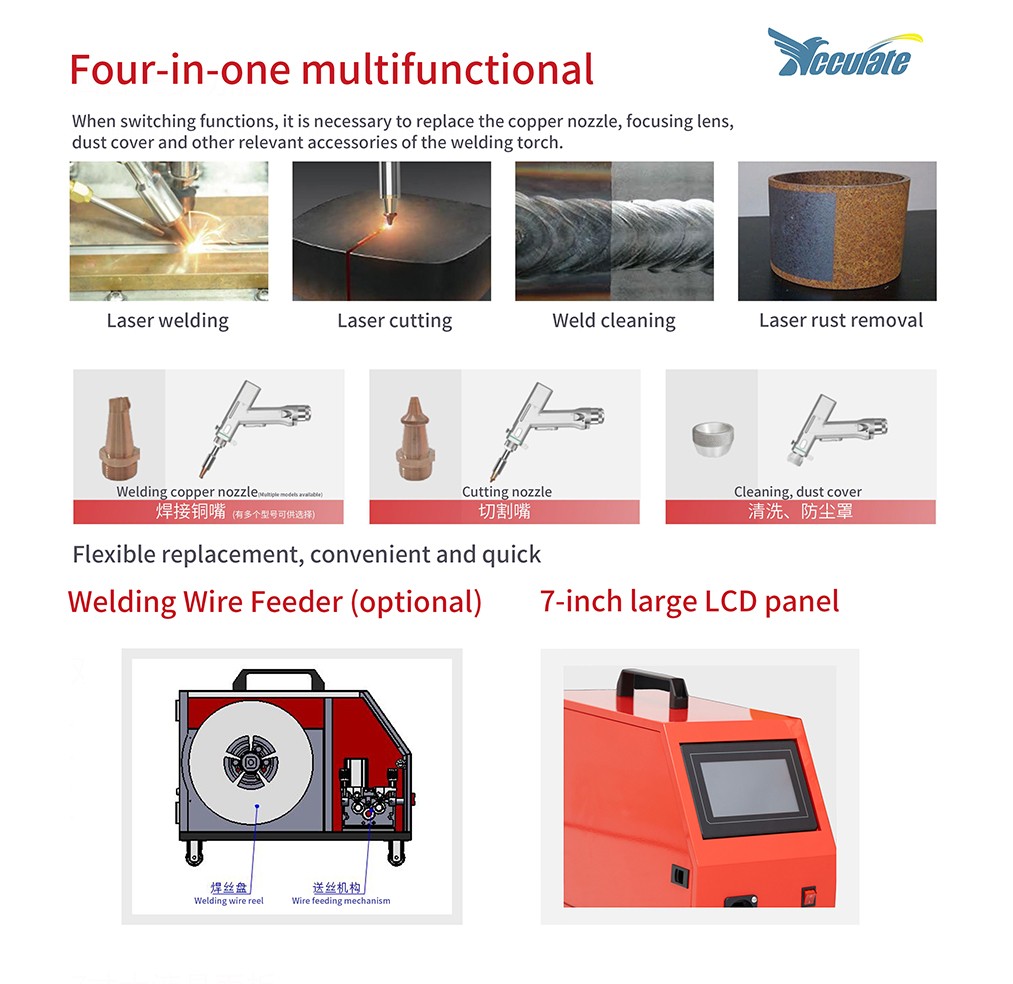

The model’s most distinctive advantage is its ability to quickly switch between the four modes simply by replacing accessories on the welding torch—such as the copper nozzle, focusing lens, and dust cover. Furthermore, once the laser is focused, it delivers high power density, a small spot diameter, and a stable, concentrated heat source, resulting in virtually no spatter and eliminating the need for post-welding grinding.

Product Features

· Carefully selected industrial-grade lasers with sufficient power and no exaggerated specifications

· Industrial-grade laser electronic control and optical control solutions ensure stable laser power output with minimal fluctuations

· Generous redundancy in laser chips minimizes power decay

· A stable and reliable handheld laser welding gun system solution tailored to user needs

· A professional dual-temperature, dual-control water-cooling system ensures stable welding over extended periods

· Industrial-grade LCD screen with intuitive touchscreen operation for simple and efficient human-machine interaction

· Supports storage of 10 sets of parameters, including user-defined settings

· Features both continuous and modulated modes, suitable for heat conduction welding of thin sheets and deep penetration welding of medium-to-thick sheets with high aspect ratios

· Suitable materials: carbon steel, stainless steel, high-strength steel, galvanized sheet, corrugated sheet, aluminum alloy, magnesium alloy, titanium alloy, and other metal materials

· Suitable industries: Automotive components, two- and three-wheeled vehicles, photovoltaics, energy storage, sheet metal fabrication, and other applications involving diverse welding stations and complex processes

A stable and reliable handheld laser welding torch system solution that better meets user needs.

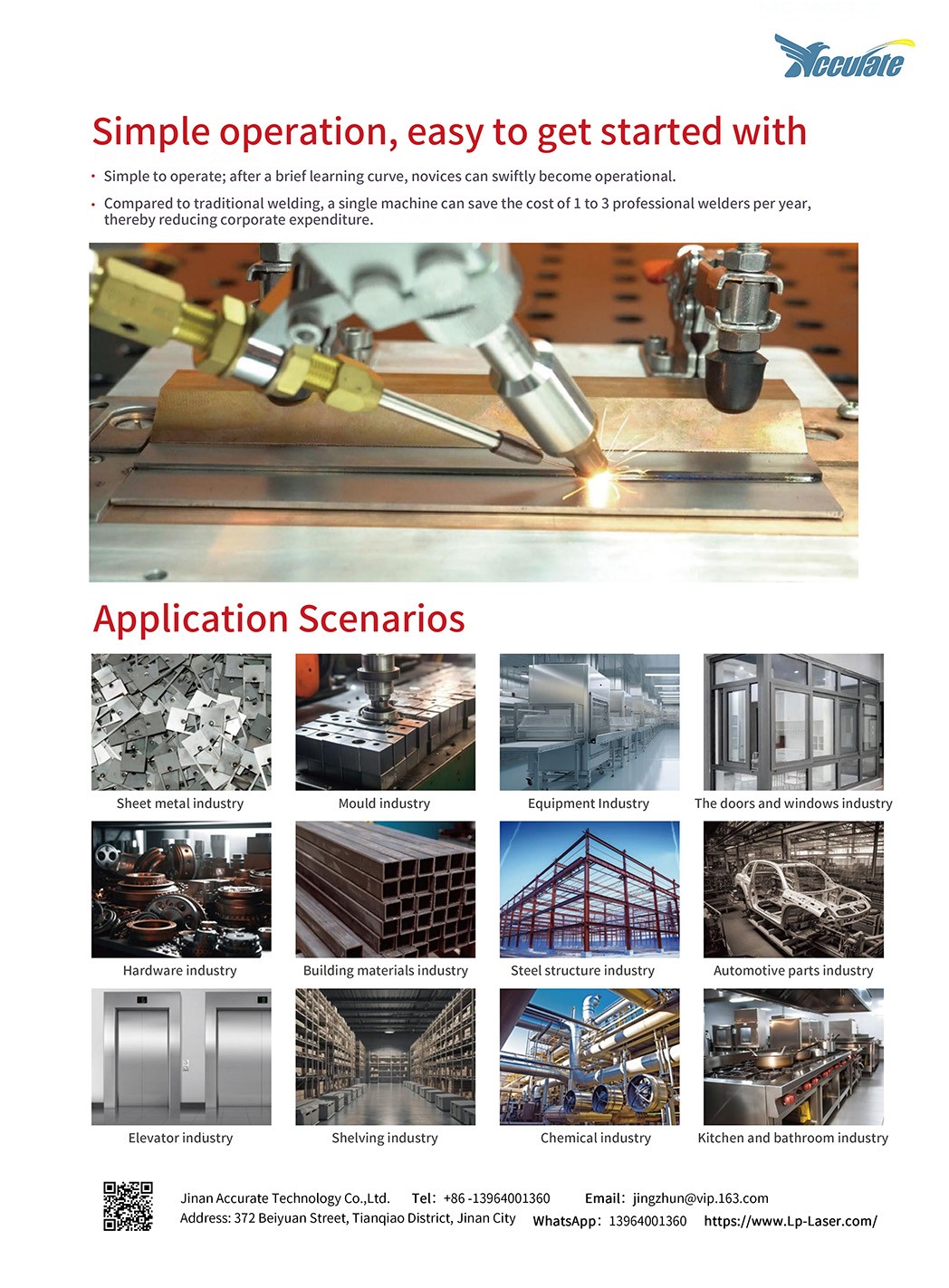

With an intelligent control system and lightweight, handheld design, even ordinary welders can get up to speed after just a short training period, significantly lowering the workforce entry barrier.

Equipped with an industrial-grade LCD screen, touchscreen operation is simple, and human-machine interaction is straightforward and efficient.

Features a professional dual-temperature, dual-control water-cooling system to ensure stable welding over extended periods.

Welding Wire Feeder

· Supports dual-wire welding with wire diameters of 1.6–2.5 mm, increasing deposition rate and significantly improving weld strength

· Weld width adjustable up to 8 mm, offering greater adaptability to gap sizes

· Unique wire feed motor design ensures greater consistency in dual-wire feeding, better meeting the needs of frontline operations

· Simple and intuitive operation, stable wire feeding, and superior weld bead formation

7-inch Large LCD Panel

· Both the main unit and the wire feeder feature 7-inch large LCD panels for added convenience

· Control panel, function settings, and welding modes are clearly displayed at a glance

· Supports storage of 10 sets of process parameters for quick recall

Laser Welding Capabilities:

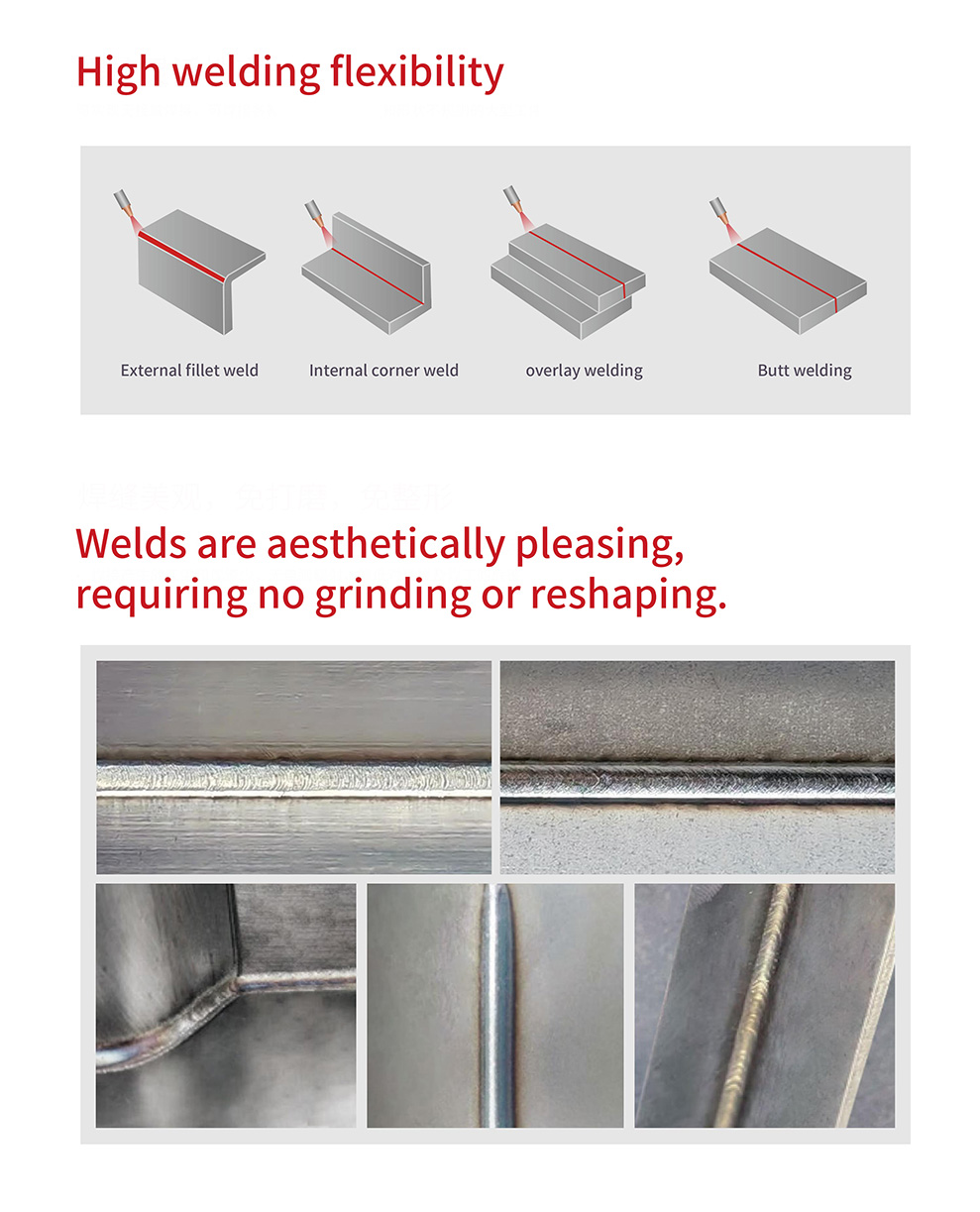

The 4-in-1 laser welding machine utilizes a high-power laser beam to produce strong, smooth, and aesthetically pleasing welds with high speed and precision.

These machines support a variety of metals, such as stainless steel, carbon steel, and aluminum alloys.

Laser Cutting Capabilities:

The 4-in-1 laser welding machine can also precisely cut thin metal materials and efficiently cut a wide range of metal sheets.

Laser Cleaning Capabilities:

In addition to welding and cutting, the 4-in-1 machine is equipped with a laser cleaning function. This feature is ideal for cleaning surfaces prior to welding, removing contaminants to prepare the surface and ensure optimal welding results.

Equipped with a reliable laser source, these machines efficiently remove rust, grease, paint, and coatings from metal surfaces, ensuring clean and secure welds.

Weld Bead Cleaning Function:

The 4-in-1 machine features a weld bead cleaning function designed to clean weld seams after welding. This ensures that residues or discoloration from the welding process are removed, keeping the surface clean and smooth, and enhancing the overall quality and appearance of the final product.
