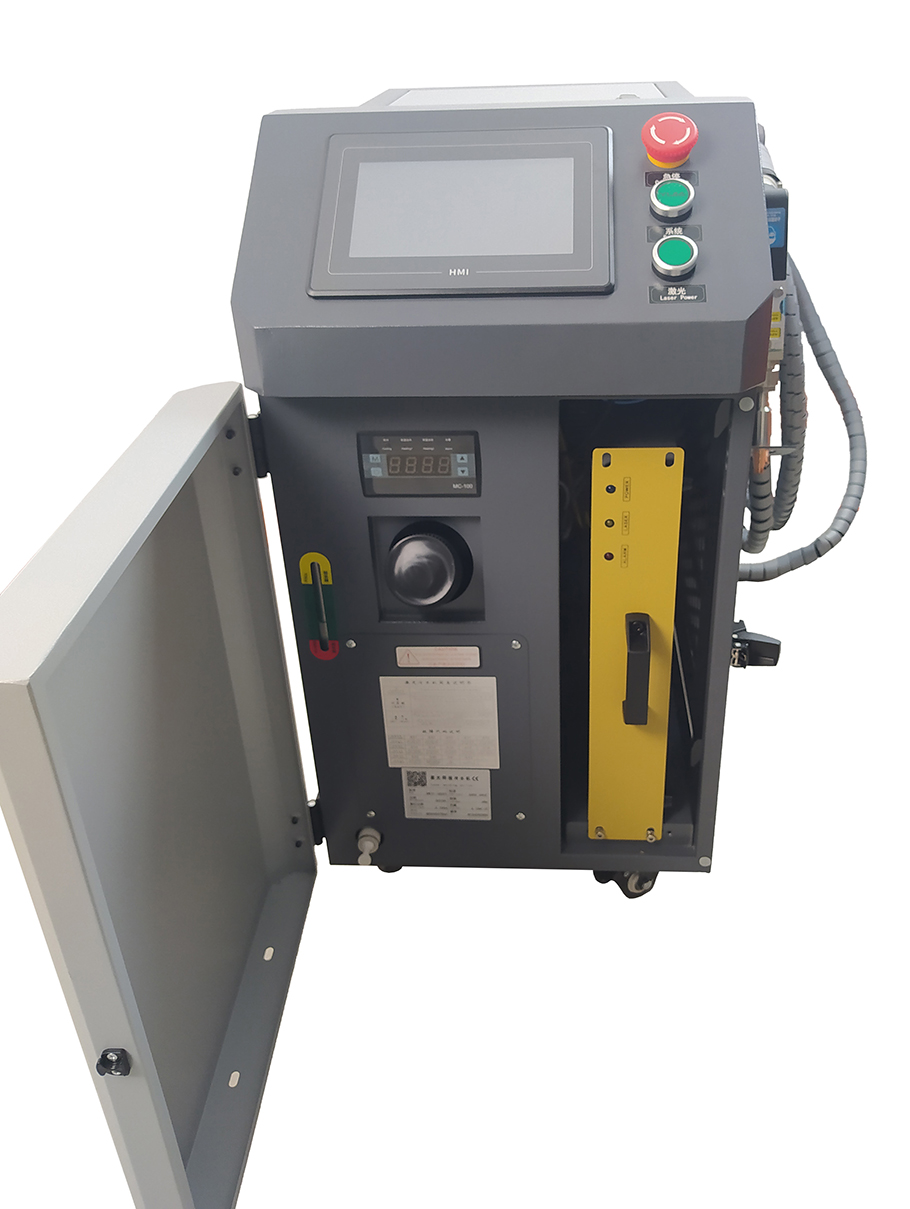

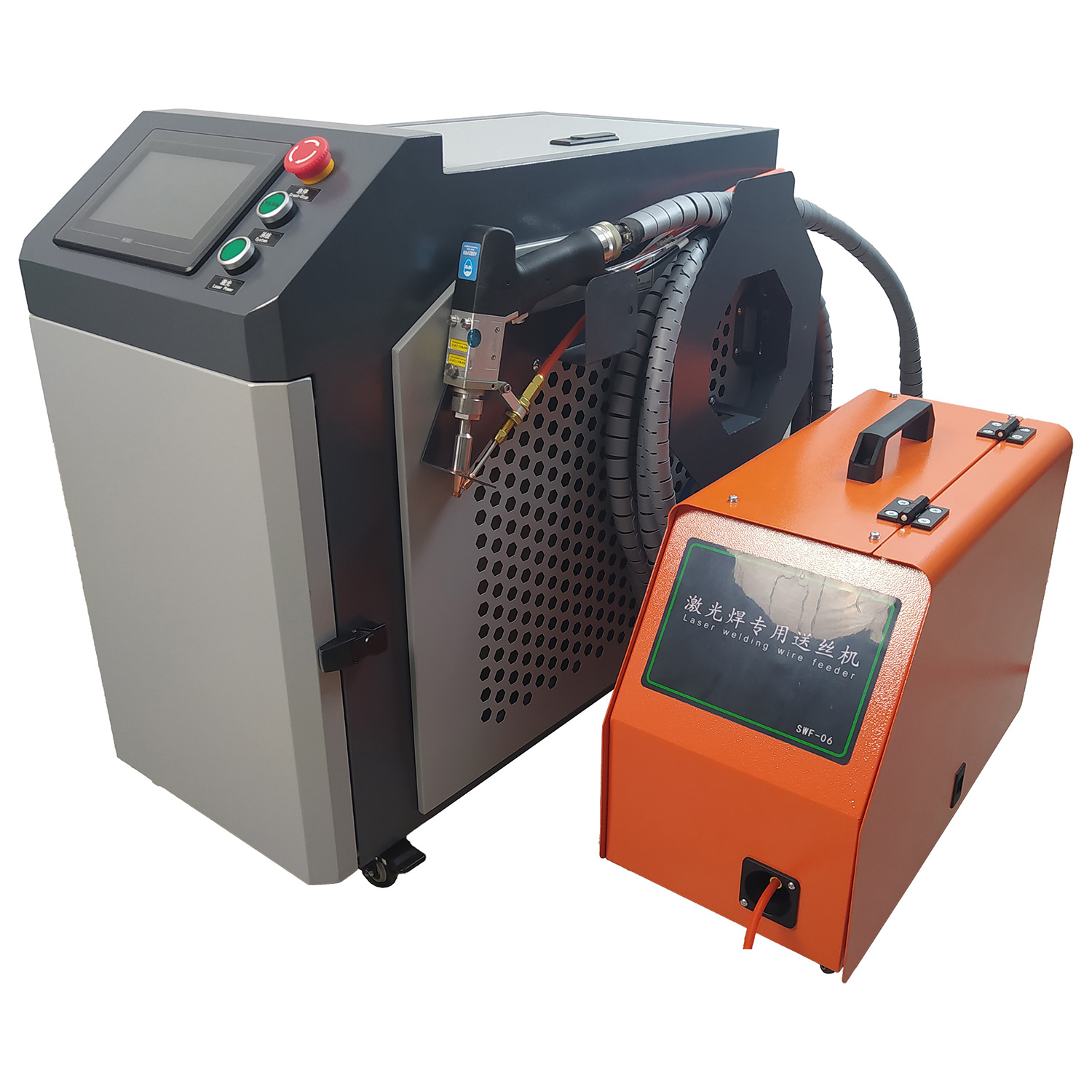

Water-cooled laser welding machines integrate the laser, power supply, and water-cooled heat dissipation system into a single enclosure, saving valuable production space.
Industrial-grade laser electronic and optical control solutions ensure stable laser power output with minimal fluctuations, providing a stable and reliable handheld laser welding torch system that better meets user needs.
Product Features
· Carefully selected industrial-grade lasers with sufficient power and no exaggerated specifications
· Industrial-grade laser electronic control and optical control solutions ensure stable laser power output with minimal fluctuations
· Generous redundancy in laser chips minimizes power decay

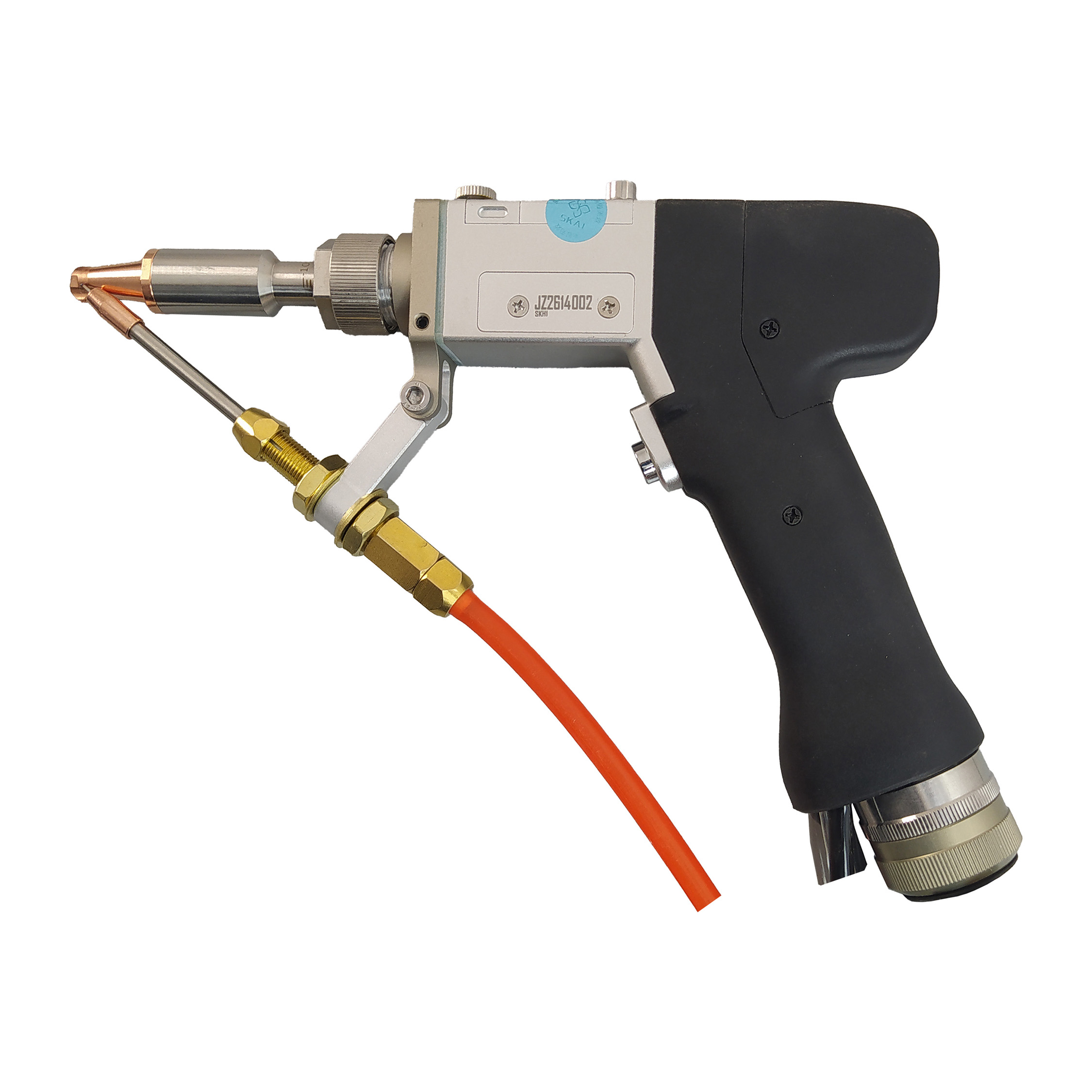

· A stable and reliable handheld laser welding gun system solution tailored to user needs
· A professional dual-temperature, dual-control water-cooling system ensures stable welding over extended periods
· Industrial-grade LCD screen with intuitive touchscreen operation for simple and efficient human-machine interaction
· Supports storage of 10 sets of parameters, including user-defined settings
· Features both continuous and modulated modes, suitable for heat conduction welding of thin sheets and deep penetration welding of medium-to-thick sheets with high aspect ratios
· Suitable materials: carbon steel, stainless steel, high-strength steel, galvanized sheet, corrugated sheet, aluminum alloy, magnesium alloy, titanium alloy, and other metal materials
· Suitable industries: Automotive components, two- and three-wheeled vehicles, photovoltaics, energy storage, sheet metal fabrication, and other applications involving diverse welding stations and complex processes
Specifications: | HLW-1500W | HLW-2000W |
Supply Voltage: | 220V | |
Temperature: | 5℃～40℃ | |
Humidity: | 30-85% | |
Total Power Consumption: | 7.6KW | 9.6KW |
Output Power: | 1500W | 2000W |
Operating Mode: | Continuous mode/Pulse mode | |
Wavelength: | 1080±10 nm | |
Fibre Length: | 10±0.5m | |
Cooling Method: | Water-cooled | |
Welding Thickness: | 0.4-4.5 | 0.5-6 |
Overall Dimensions: | 840×385×730mm | 840×385×730mm |
Package Dimensions: | 900×450×1000mm | 900×450×1000mm |
Overall Weight: | 95kg | 99kg |

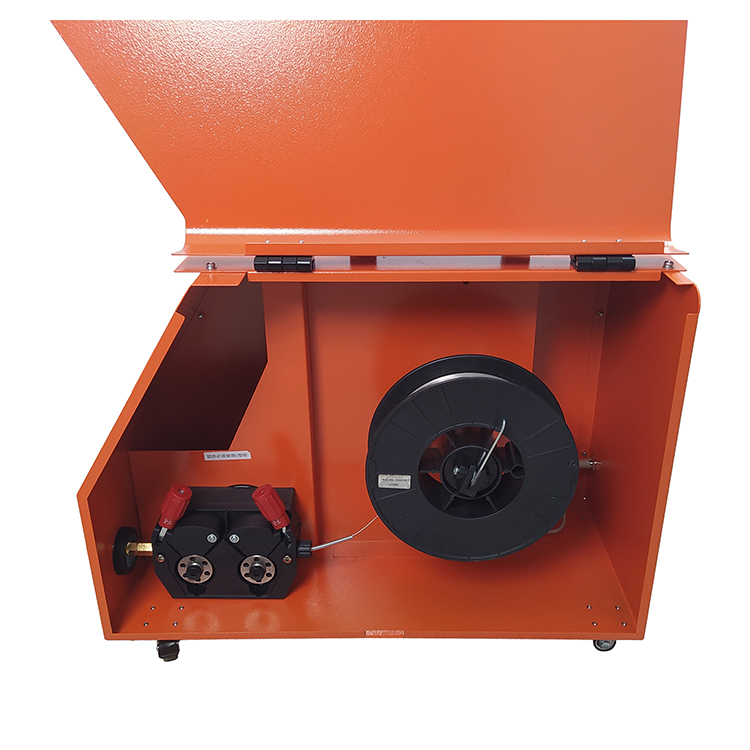

Welding Wire Feeder

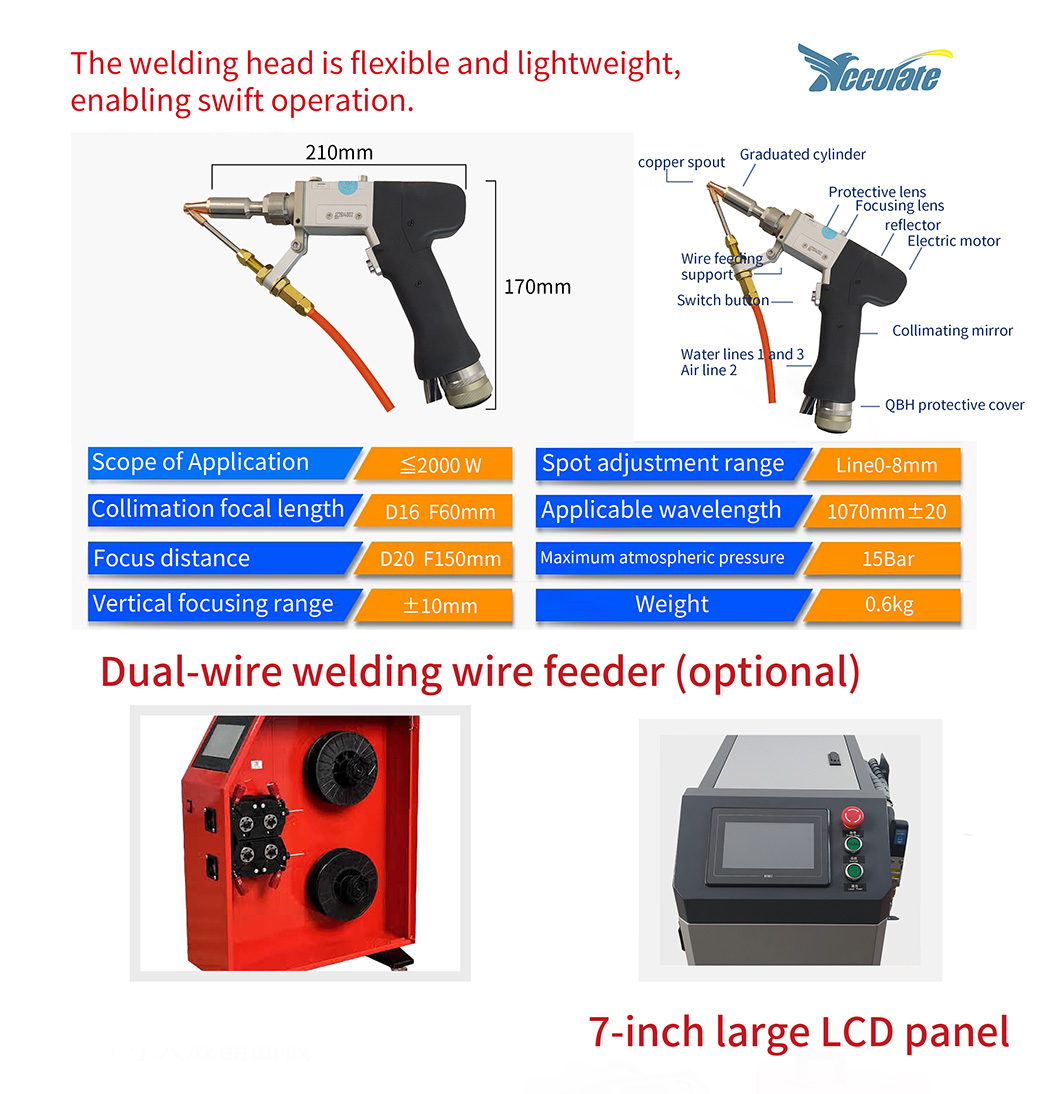

· Supports dual-wire welding with wire diameters of 1.6–2.5 mm, increasing deposition rate and significantly improving weld strength
· Weld width adjustable up to 8 mm, offering greater adaptability to gap sizes
· Unique wire feed motor design ensures greater consistency in dual-wire feeding, better meeting the needs of frontline operations
· Simple and intuitive operation, stable wire feeding, and superior weld bead formation
7-inch Large LCD Panel
· The main unit features a 7-inch large LCD panel for added convenience
· The control panel, function settings, and welding modes are clearly displayed at a glance
· Supports storage of 10 sets of process parameters for quick recall
· Enables contactless welding and can weld a wide variety of complex workpieces and large workpieces with irregular shapes

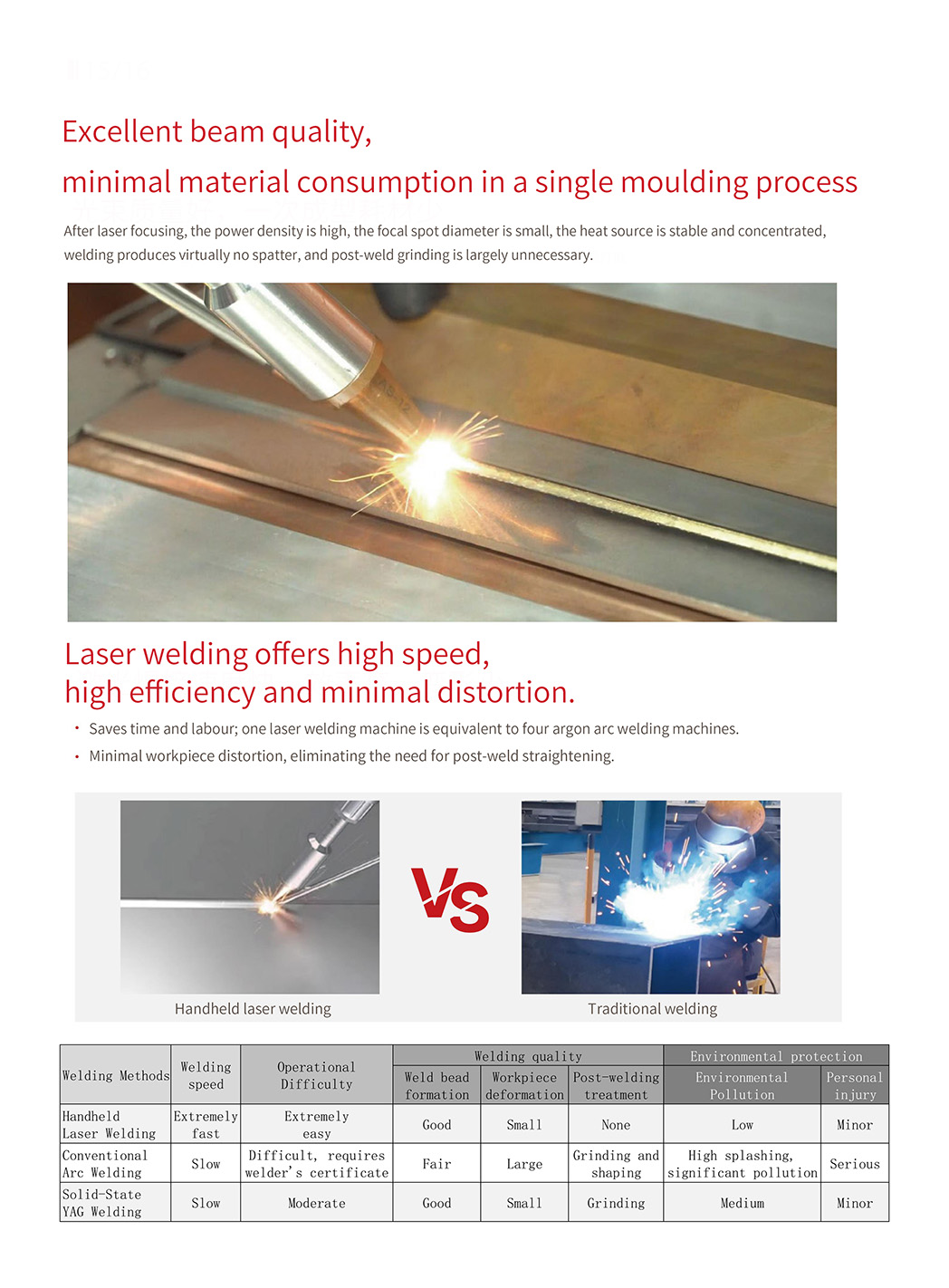

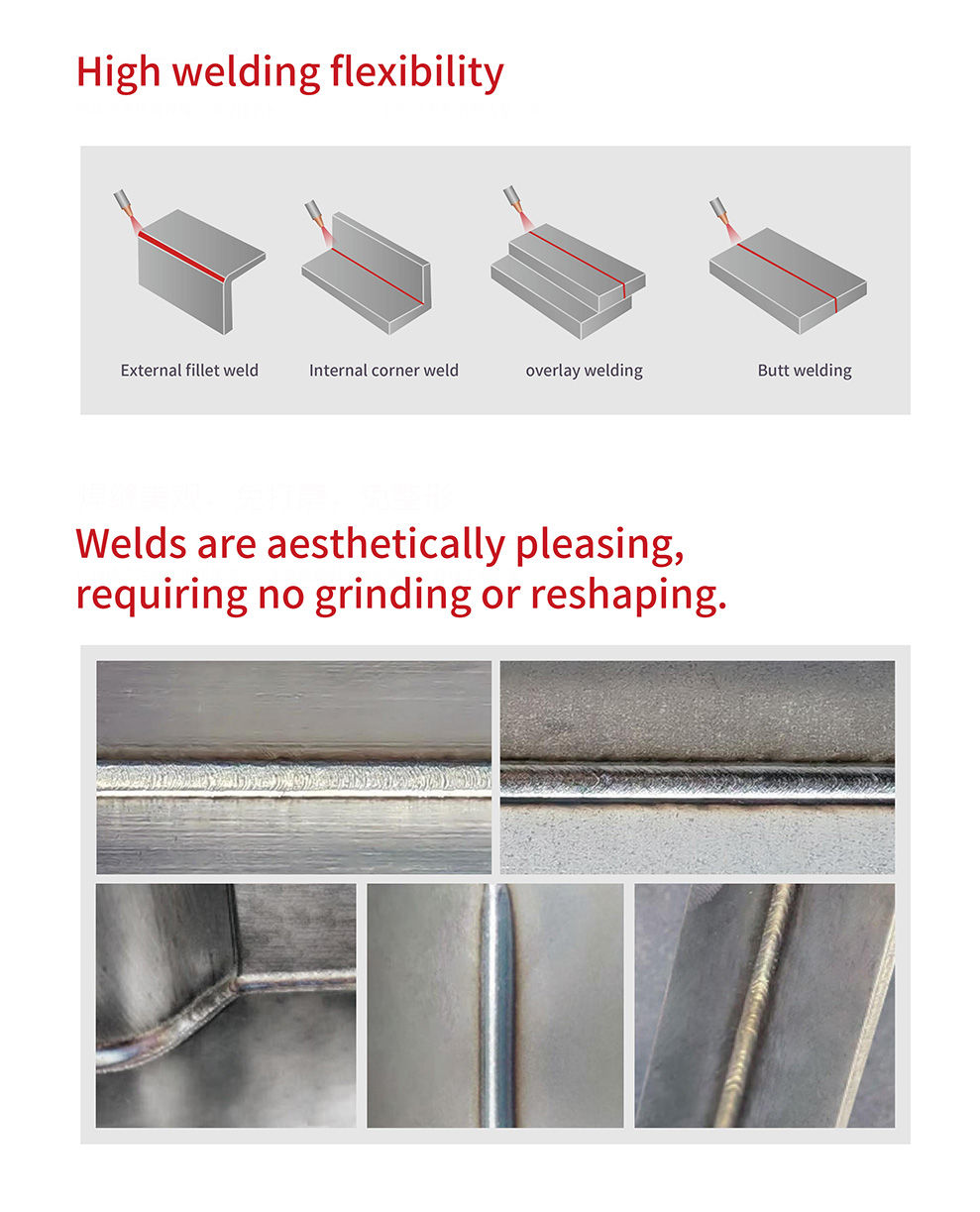

· Smooth weld transitions, strong welds, a small heat-affected zone, and minimal overall workpiece distortion, eliminating the need for secondary grinding or reshaping
· Produces minimal welding dust and slag, with no arc radiation, reducing harm to the environment and welders
