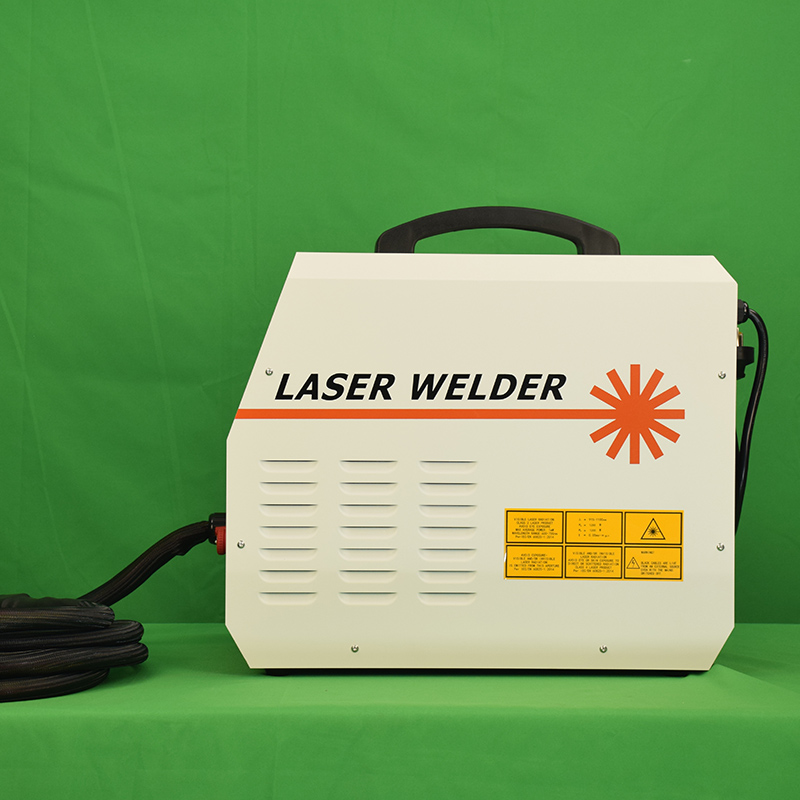

Air Cooled Laser Welding Machine
Air Cooled Laser Welding Machine Features:
Double the efficiency, can be a long time without stopping welding, -10 ~ 40 ℃ working environment, stable operation.7 inch industrial LED touch screen, simple operation, multiple safety protection functions, all-round, intelligent protection.ABR technology, easy to weld aluminium, copper and other high anti-materials.
Product Description:
An air-cooled laser welding machine is a type of equipment used for joining materials using laser technology. Unlike water-cooled laser welding machines, which use water as a coolant to dissipate heat generated during the welding process, air-cooled machines use air as the cooling medium.
However, it's worth noting that air-cooled laser welding machines may have limitations in terms of their cooling capacity compared to water-cooled systems. This could affect their suitability for certain high-power or continuous welding applications where heat dissipation is critical. Additionally, the choice between air-cooled and water-cooled systems depends on factors such as the specific welding requirements, materials being welded, and operational environment.

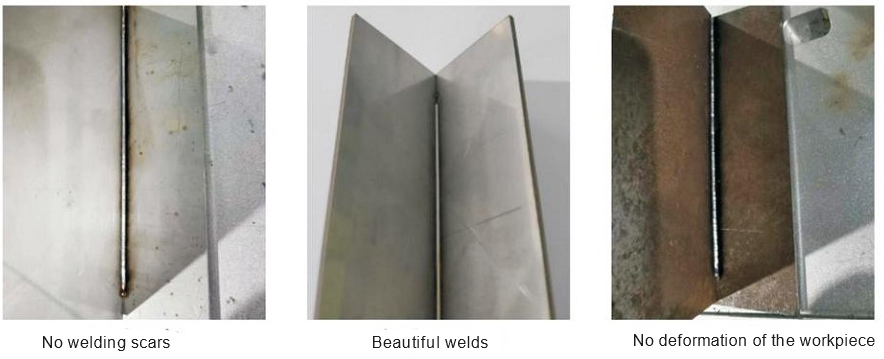

Sample Photos:
Technical Parameters:
Model: | LW-1200 |
Operational Voltage: | 220V±10%、50/60Hz |
Temperature: | 5℃ ～40℃ |
Humidity: | 30-85% Non-Condensing |
Power dissipation： | ≤4.5kWh |
Power Output: | 1200W |
Operating Mode: | Continuous w/modulation option |
Laser Type: | fibre |
Max modulation frequency: | 10kHz |
Output Power Instability: | ＜5% |
Wavelength: | 1080±10 nm |
Head Cable Length: | 5±0.5 m |

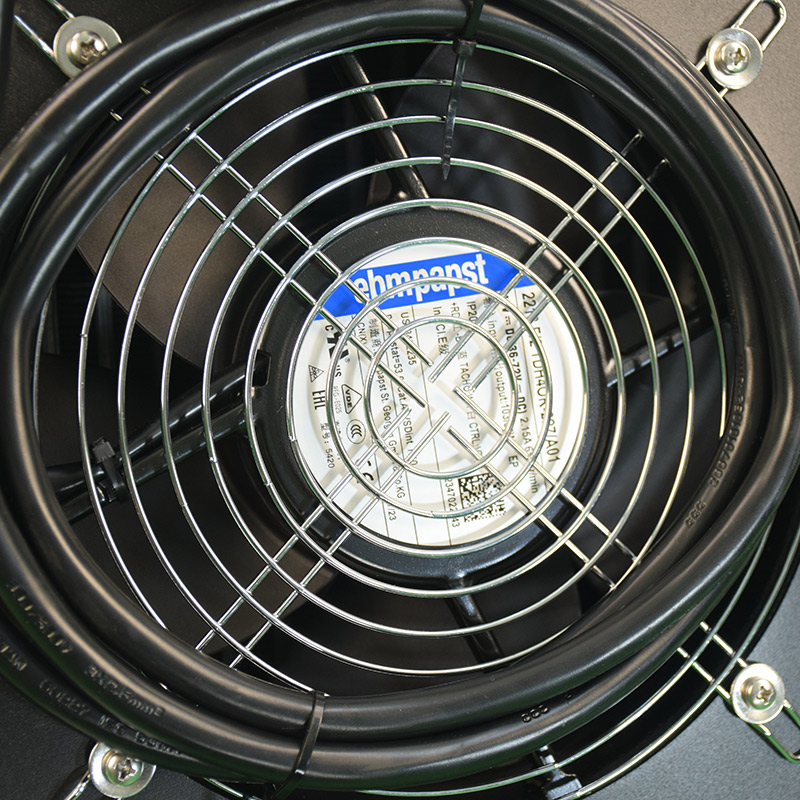

Cooling: | Forced air cooling |
Swing width: | 0~5mm |
Head Weight: | ≤0.9Kg |
Protective gas： | Inert gases (nitrogen, argon) |
Size W x H x D: | 250 x 579 x 479mm (L×W×H) |
Entire Unit Weight: | 26Kg |
Packed weight： | 28.2Kg |
Operation Mode: | handhold |
Safety Class: | Level IV |

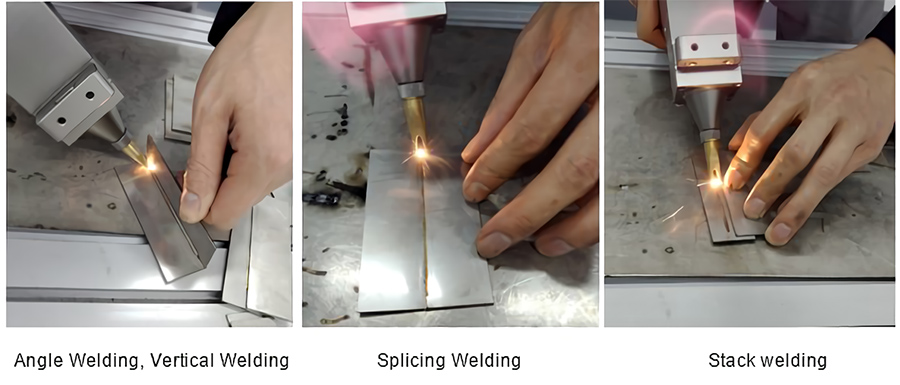

Use Cases: (handheld/automation):
