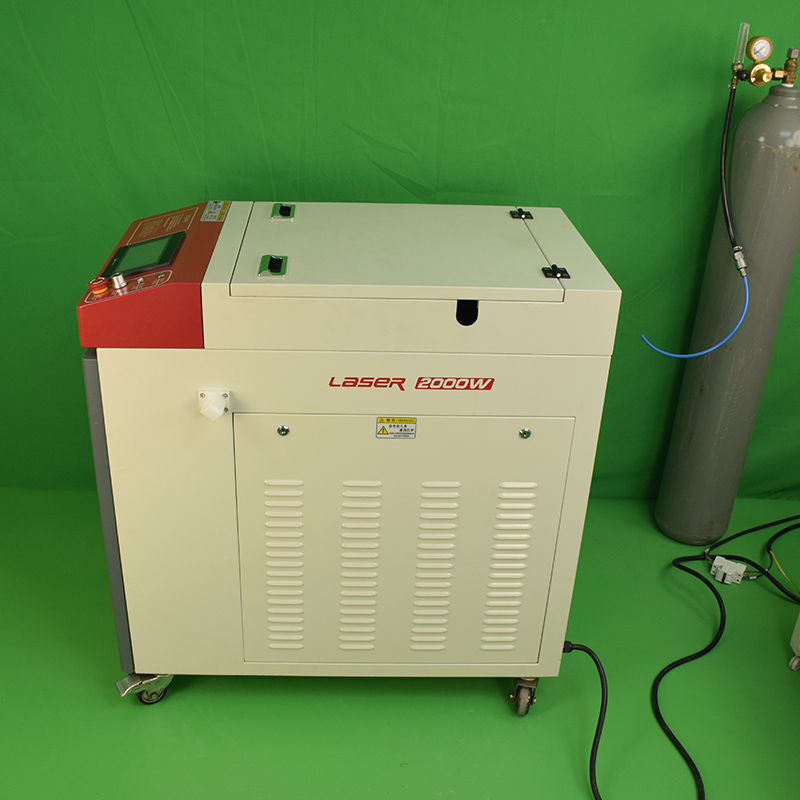

Lightweld Laser Welder
Lightweld Laser Welder Features:
Eco-Friendly & Low Operating Costs
Completely eliminates the need for chemical cleaning agents and waste disposal.
Low power consumption compared to traditional mechanical or chemical processes, reducing long-term operational expenses.
High Precision & Non-Destructive Cleaning
Achieves micron-level accuracy, preserving the integrity of delicate surfaces and substrates.
Selectively removes contaminants without damaging the base material, ideal for sensitive applications like electronics or historic restoration.
Enhanced Efficiency & Versatility
Cleans complex geometries and hard-to-reach areas faster than traditional methods (e.g., abrasives or chemicals).
Suitable for a wide range of contaminants (rust, paint, oxides) and materials (metals, plastics, ceramics).
Product Description:
The LightWeld introduces a next-generation solution for portable laser welding, meticulously engineered to deliver micron-level precision and optimal performance across a wide range of demanding industrial applications. Leveraging state-of-the-art fiber laser technology, the system emits a collimated 1070nm wavelength beam—optimized for maximum absorption in metals—ensuring superior energy transfer and efficient welding processes.

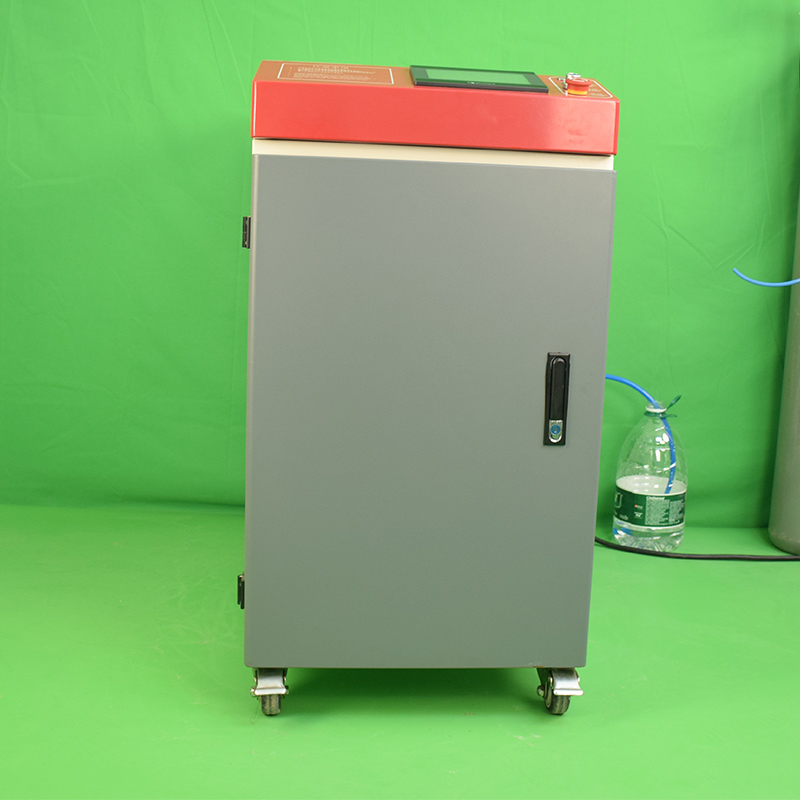

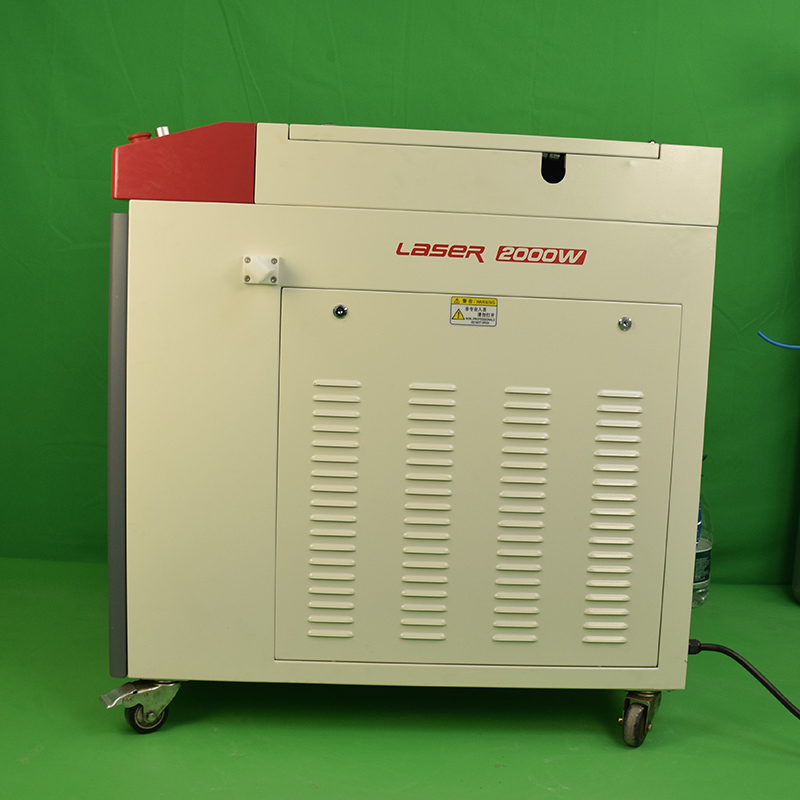

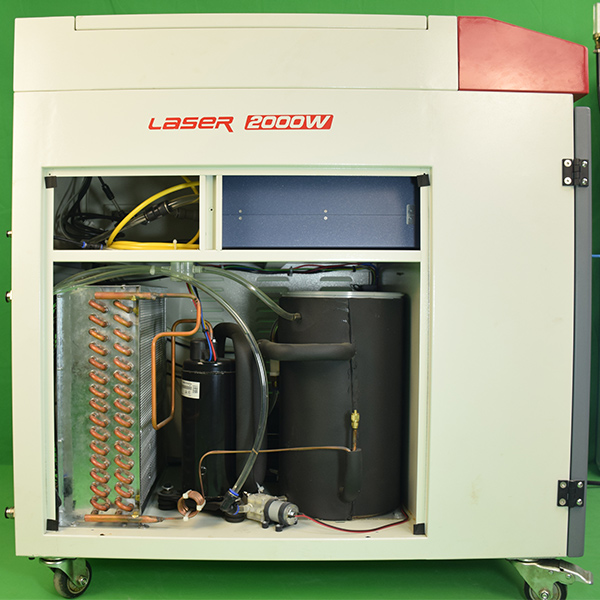

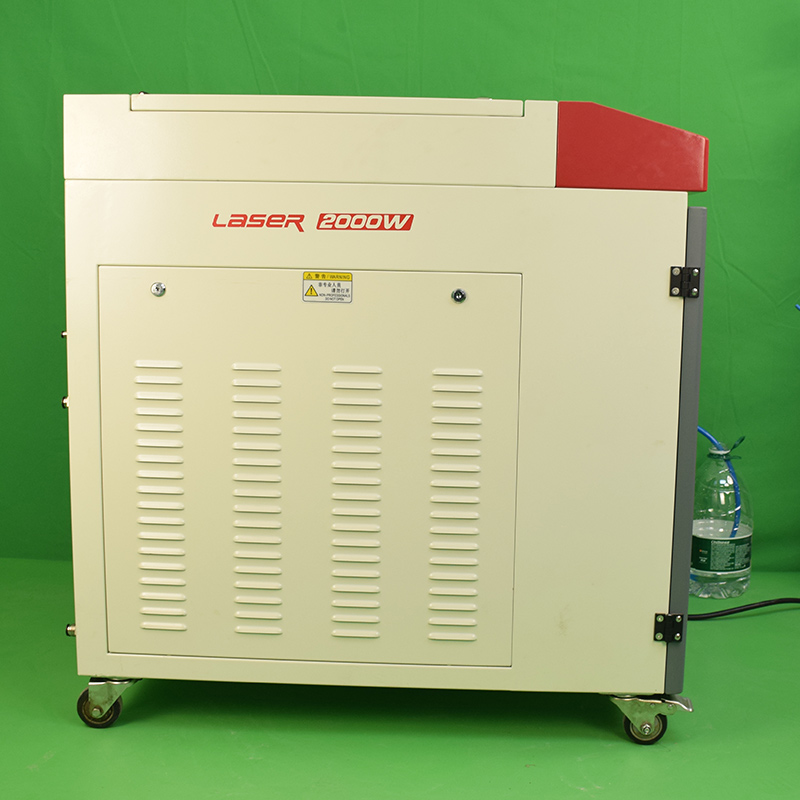

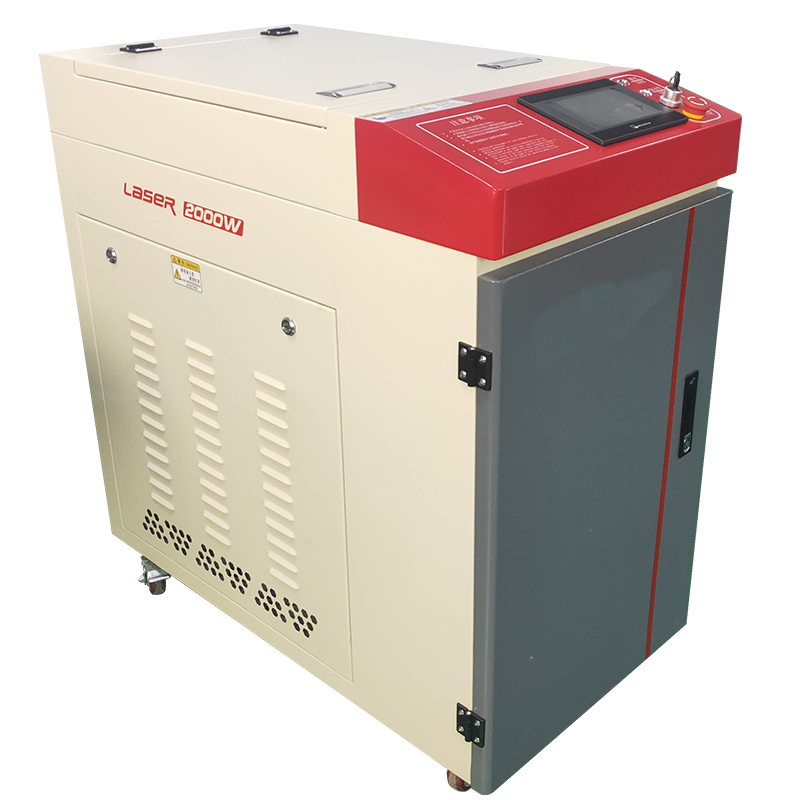

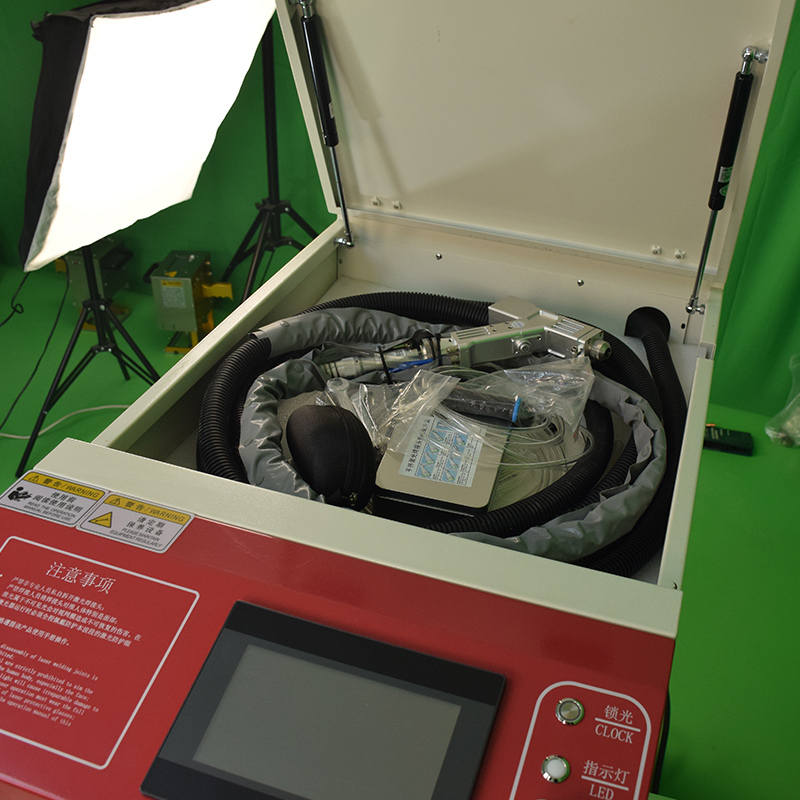

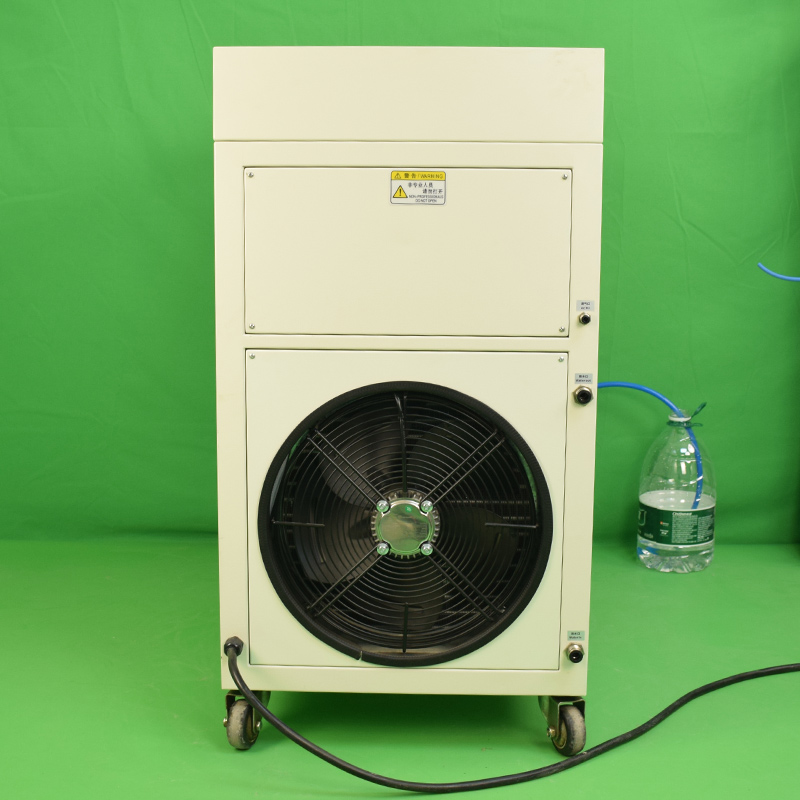

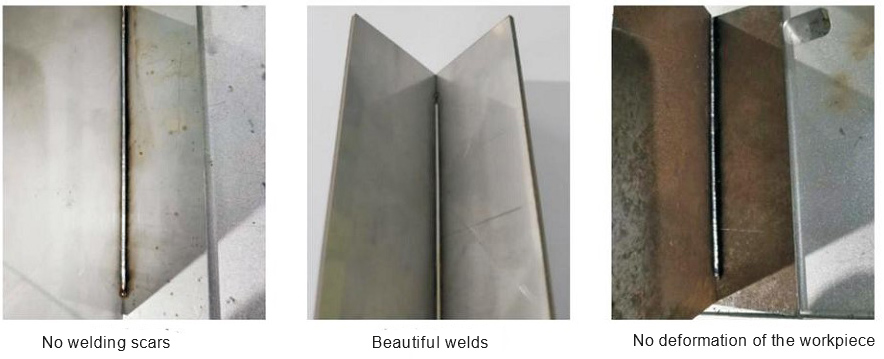

Sample Photos:
Technical Parameters:
Model: | HLW-1500W | HLW-2000W | HLW-3000W |
Operational Voltage: | 220V±10%、50/60Hz | ||
Temperature: | 5℃ ～45℃ | ||
Humidity: | 30-85% Non-Condensing | ||
Power dissipation： | ≤7.7KW | ≤9.5KW | ≤14.5KW |
Power Output: | 1500W | 2000W | 3000W |
Operating Mode: | Continuous w | ||
Laser Type: | fibre | ||
Max modulation frequency: | 10kHz | ||
Output Power Instability: | ＜5% | ||
Wavelength: | 1080±10 nm | ||
Head Cable Length: | 5±0.5 m | ||
Cooling: | water cooling | ||
Swing width: | 0~5mm | ||
Head Weight: | ≤0.91Kg | ||
Protective gas： | Inert gases (nitrogen, argon) | ||
Size W x H x D: | 1200×630×1160mm | 1200×630×1160mm | 1200×630×1160mm |
Box Dimensions | 1260×720×1350mm | 1260×720×1350mm | 1260×720×1350mm |
Entire Unit Weight: | 180Kg | 220Kg | 260Kg |
Operation Mode: | handhold | ||
Safety Class: | Level IV | ||

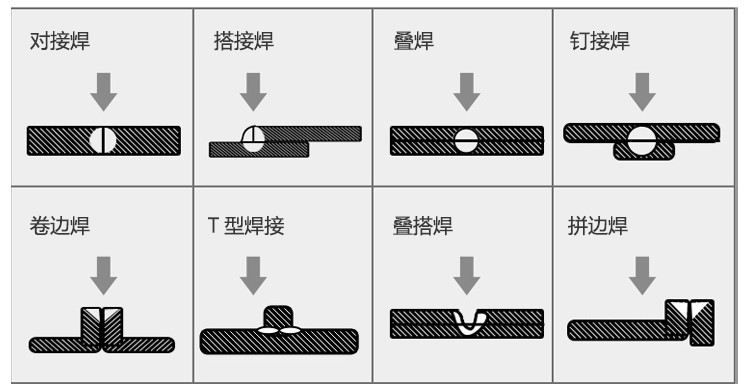

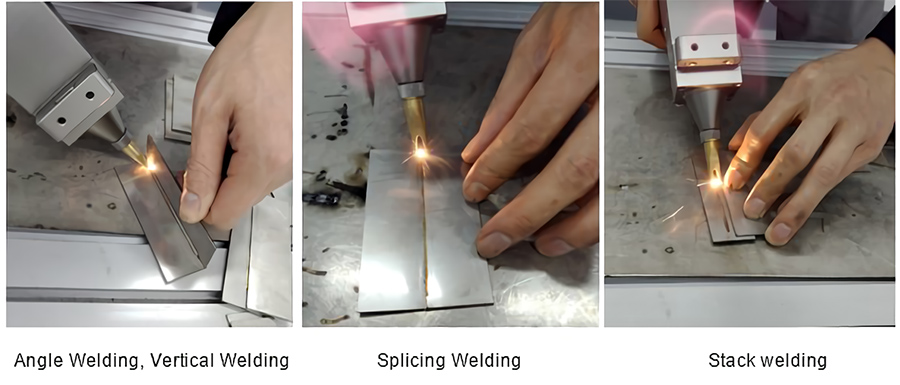

Welding Method:
Welding Depth:
power | stainless steels | carbon steel | galvanised sheet | aluminium | brass | pure copper |
1000W | 3mm | 3mm | 3mm | 2mm | 1.5mm | 1mm |
1500W | 4mm | 4mm | 4mm | 3mm | 2mm | 1.5mm |
2000W | 5mm | 5mm | 5mm | 4mm | 2.5mm | 2mm |
3000W | 6mm | 6mm | 6mm | 5mm | 3mm | 2.5mm |
Use Cases: (handheld/automation):
