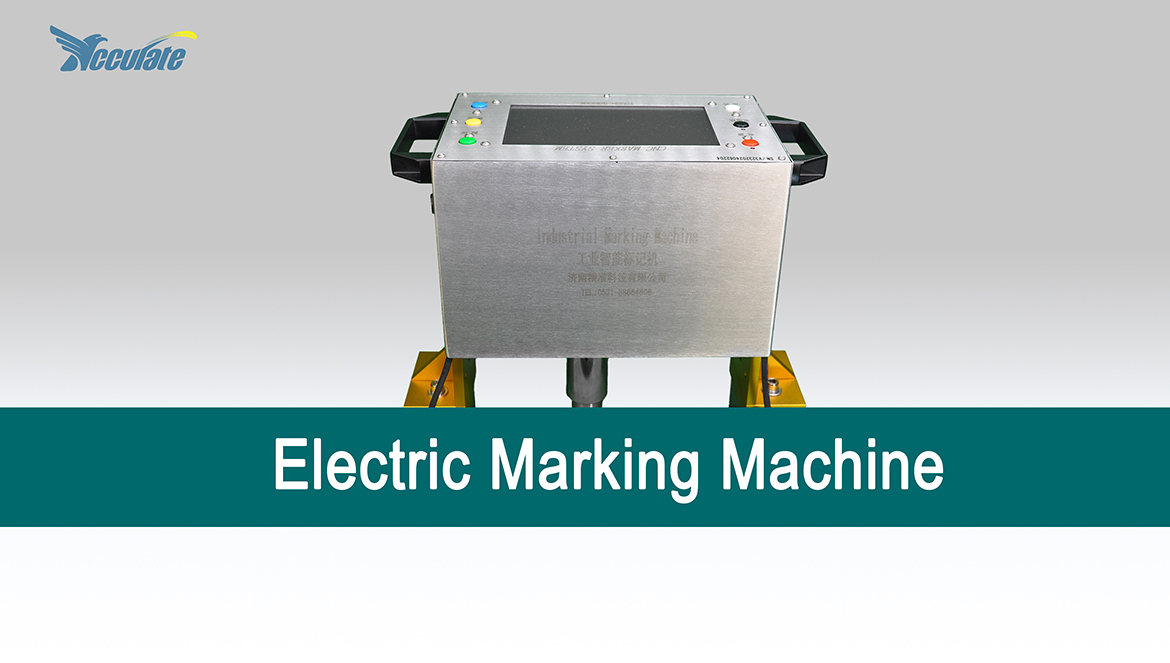

Electric Marking Machine
The core advantages of electric marking machines lie in their environmental friendliness and convenience. They require no external air supply, are powered solely by electricity, are plug-and-play, and produce no dust, significantly improving the workshop environment. Additionally, they offer high marking accuracy of ±0.1 mm to 1.0 mm (depending on the material). Furthermore, the equipment is compact and easy to integrate. Some models even offer a handheld version powered by a lithium-ion battery, facilitating flexible on-site operations for large workpieces.
An electric marking machine is a contact-type marking device that uses electric drive technology. It generates a magnetic field through an electromagnetic coil to drive the marking needle to strike the workpiece surface at high frequency, forming characters, graphics, or QR codes composed of dot matrices or continuous lines. It is ready to use as soon as it is plugged in and features low noise, dust-free operation, and simple maintenance.
Even after the workpiece undergoes subsequent surface treatments such as painting, powder coating, electroplating, or blackening, the original deep markings remain clearly visible and may even become more prominent due to the coating filling in the marks.
Smart Controller

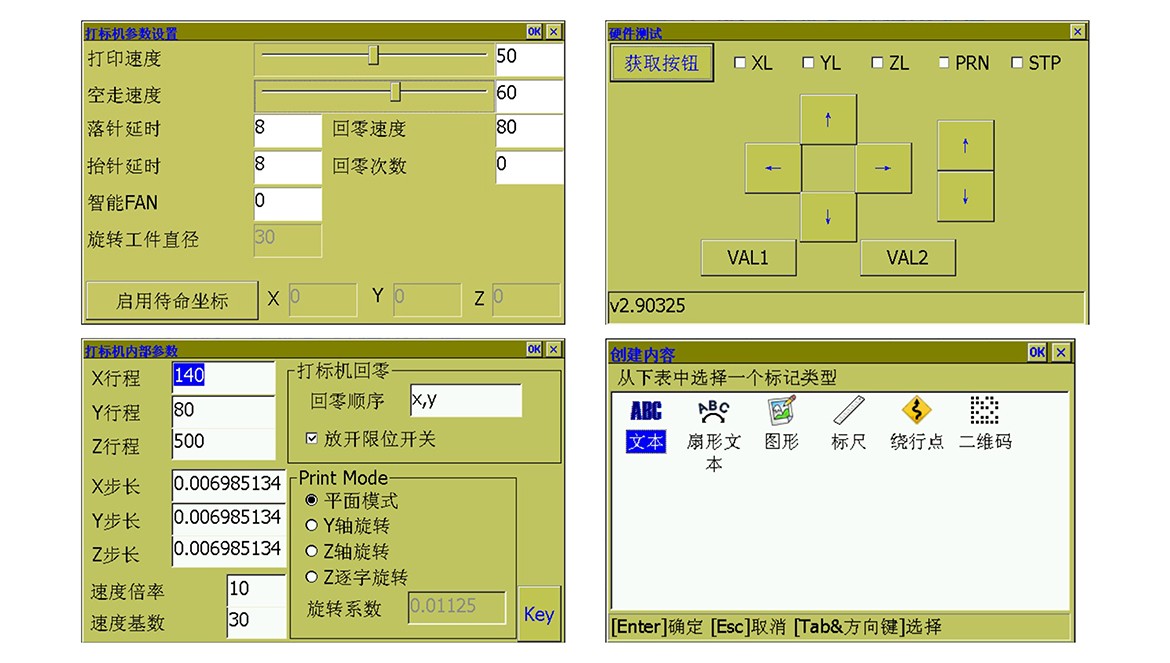

Designed to meet the demanding requirements of modern industry, this controller is suitable for any environment. The color touchscreen simplifies setup and comes standard with a wide range of features.
Advanced Communication
Equipped with various interfaces (USB, Ethernet, RS232), it can read data from MES systems and interact with selected MES data via custom software.
Data-Driven Insights
The controller panel and maintenance information allow you to directly monitor the machine’s status.
Quality and Precision
Designed to meet the most stringent standards, this system delivers high marking precision and superior quality. Its robust mechanical structure and high-precision guide rails ensure perfect needle alignment and repeatable marking accuracy.
Versatility
The marking head incorporates Precision Technology’s DDCTM (Dynamic Dot Control) technology, which automatically adjusts dot density based on the required marking size and depth.
DATAMATRIX QR Code Marking

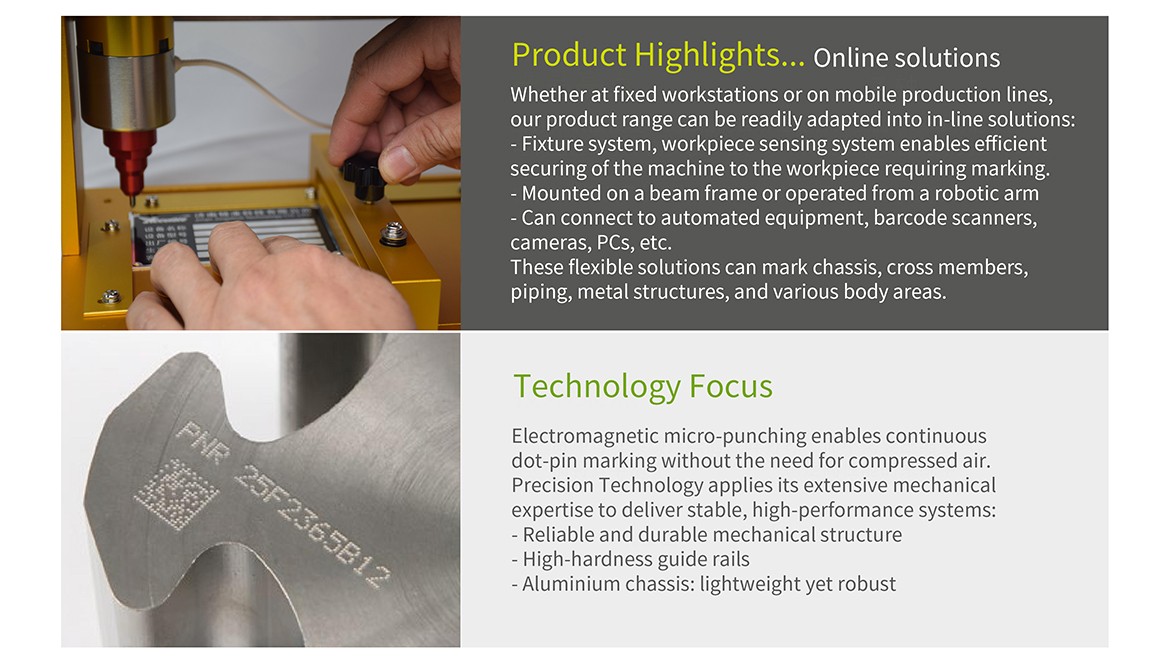

The electromagnetic marking pen is equipped with a high-performance coil, making it particularly suitable for marking QR codes (Datamatrix, UID, QR codes, etc.). Stable and fast, it has proven its value in high-value-added applications across numerous demanding industries.
Compact
The ideal solution for small spaces, allowing you to easily integrate a marking system into your production line. Whether on a production line or a robotic arm, it can be easily installed in any orientation, significantly reducing installation time and costs.
Fast
Equipped with fast, high-precision linear guides, it delivers high-quality markings at high speeds on all types of materials.
Durable
Its stability has been proven in a wide range of industrial environments, enabling it to withstand the harshest conditions and highest production cycles. Its rugged design makes this marking solution particularly well-suited for high-paced production.
Model: | EM-60×140 |
Controller: | Embedded Software and Touchscreen |
Marking Window: | 60×140mm |
Marking Speed: | 1-180 characters/minute (5mm height) |
Marking Depth: | 0.1-1.0mm (depending on material) |
Marking Content: | Numbers 0-9, letters A-Z, Chinese characters, common graphic symbols, QR codes, logos, etc. |
Power Supply Method: | 110-240V ±10%, 50Hz |
Power: | <50W |
Machine Dimensions: | L330 (including handle) × W153 × H278 (mm) |
Machine Weight: | Machine net weight: 8.3kg; with accessories: 9.30kg |
