Engraving Marking Machine
1.High Marking Precision
Fine Details: It can achieve extremely high precision, capable of engraving very small characters and intricate patterns. For instance, it can engrave text with a font size as small as 1mm with clear edges and smooth lines.
Accurate Positioning: With advanced control systems and positioning mechanisms, the engraving machine can ensure that the markings are in the exact position as designed, with a positioning accuracy that can reach micron levels.
2.Excellent Marking Quality
Permanent and Durable: The markings made by the engraving machine are highly resistant to wear, fading, and corrosion. They can remain clear and intact for a long time, even in harsh environmental conditions, ensuring the long-term effectiveness of the markings.
High Contrast and Aesthetics: It can produce markings with high contrast, making the marked information stand out clearly. Whether it's a simple logo or a complex artistic pattern, it can present a high-quality visual effect.
3.Wide Material Applicability
Versatile Material Compatibility: It can work on a wide variety of materials, including metals such as steel, aluminum, copper, and titanium, as well as non-metals like plastics, ceramics, glass, wood, and leather.
Customizable for Different Materials: Different materials can be processed by adjusting the parameters of the engraving machine, such as laser power, engraving speed, and cutting depth, to achieve the best engraving effect.
4.High Efficiency and Productivity
Fast Engraving Speed: The engraving speed is relatively high. For example, a laser engraving machine can complete an engraving task of a simple pattern within a few seconds, which greatly improves the production efficiency, especially in mass production scenarios.
Continuous Operation: With good stability, the engraving machine can work continuously for a long time, reducing downtime and increasing overall productivity.
5.Flexible Operation and Customization
User-Friendly Software: The engraving machine is equipped with dedicated software that allows users to easily design and edit marking content, import graphics and text in various formats, and adjust parameters such as engraving depth and speed according to their needs.
Customizable Marking: It can meet different customization requirements, such as marking serial numbers, barcodes, QR codes, and personalized patterns, to meet the specific needs of different industries and customers.

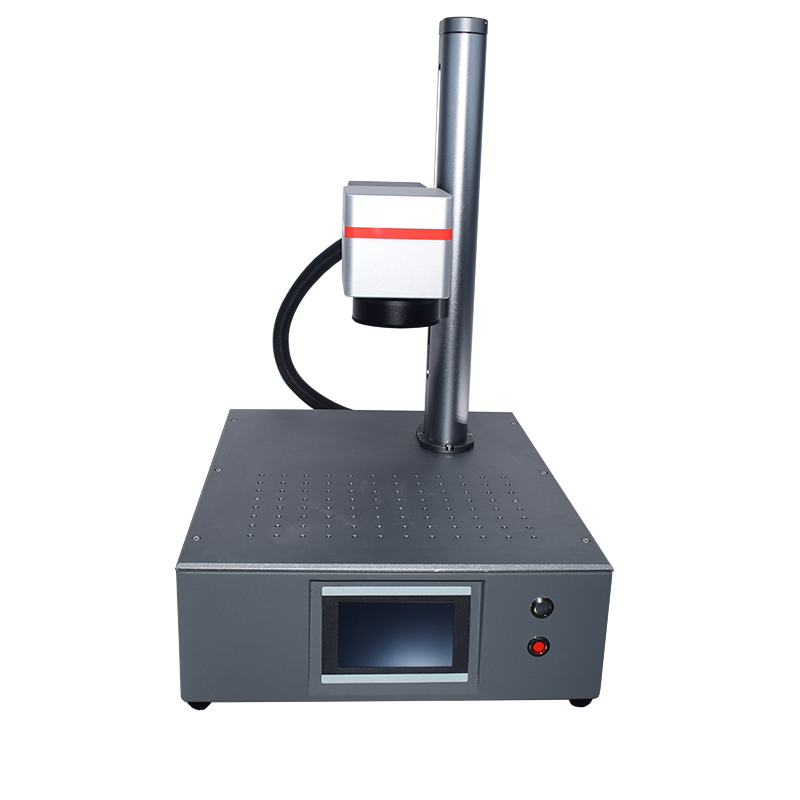

Product Introduction
The Engraving Marking Machine is a device specifically designed to create permanent and precise markings on the surfaces of various materials. It utilizes different technologies like laser, mechanical, or chemical methods to etch, carve, or cut patterns, characters, logos and other information onto the material surface.
For example, the laser engraving marking machine projects a high-energy laser beam onto the material surface. The heat from the laser beam vaporizes or melts the material in the targeted area, forming clear and accurate marks. Mechanical engraving marking machines, on the other hand, usually use a rotating cutter or stylus to remove material from the surface to create the markings. Chemical engraving marking machines use chemical reactions, such as etching with acid or other corrosive substances, to create patterns on the material surface.
| Laser Type | Fiber Laser |
| Power | 20w/30w/50w |
| Laser Source Brand | MAX/RAYCUS JPT MOPA Optional |
| Marking Area | 70*70mm/110*110mm/150*150mm |
| Minimun Line Width | 0.01mm Depends on the material |
| Minimum Character | 0.2mm Depends on the material |
| Language | Chinese, Korean, Japanese, German, French, Arabic. Spanish,Portuguese, Vietnamese, Farsi, Russian, Thai. etc. |
| Cooling Mode | Air Cooling |
| Net weight | 20kg |
Q1: How do I troubleshoot if the marking quality suddenly deteriorates?
A1: First, check the laser power settings to ensure they are correct for the material. Dirty optical components can also cause poor marking quality, so clean the lenses and mirrors. If the problem persists, check the software settings for any incorrect parameters. It could also be due to a problem with the laser source or the scanning system, in which case you may need to contact the manufacturer's technical support.
Q2: How does the warranty of the laser marking machine impact its cost - effectiveness?
A2: A longer and comprehensive warranty provides peace of mind and cost - savings. If any major components fail within the warranty period, the manufacturer will repair or replace them at no cost to you. This reduces the risk of unexpected repair expenses, which in turn improves the cost - effectiveness of the machine over its lifespan.
Q3: Can I use different types of fonts for marking on nameplates with this machine?
A3: Yes, most laser marking software supports a wide range of fonts. You can use the fonts installed on your computer or import custom fonts. In the marking software, simply select the font you want to use when creating the text for the nameplate marking.
