Continuous Laser Cleaning Machine
1.Continuous Wave Laser: The machine is equipped with a continuous wave laser, which emits a constant beam of light. This allows for continuous operation without the need for pulsing, which is common in pulsed laser cleaning systems.
2.High Throughput: Continuous laser cleaning machines are designed for high throughput, making them suitable for large-scale industrial applications where speed and efficiency are critical.
3.Automated Operation: Many continuous laser cleaning machines are fully automated, with conveyor systems or robotic arms that move the workpieces through the laser cleaning station. This reduces the need for manual intervention and increases productivity.
4.Uniform Cleaning: The continuous beam ensures consistent and uniform cleaning across the surface of the metal, which is important for maintaining quality and ensuring that subsequent processes, such as painting or welding, are not compromised.
How Continuous Laser Cleaning Machine Works?
Continuous laser cleaner, also called laser descaling machine, is suitable for removing floating rust on metal surfaces. It shows strong applicability, high speed and high cost performance in the field of rough machining, and is suitable for industries that do not require fine work, such as descaling of steel plates and sheet metal, descaling of steel structures and tubes, and cleaning of ship bottoms and bottom bins.

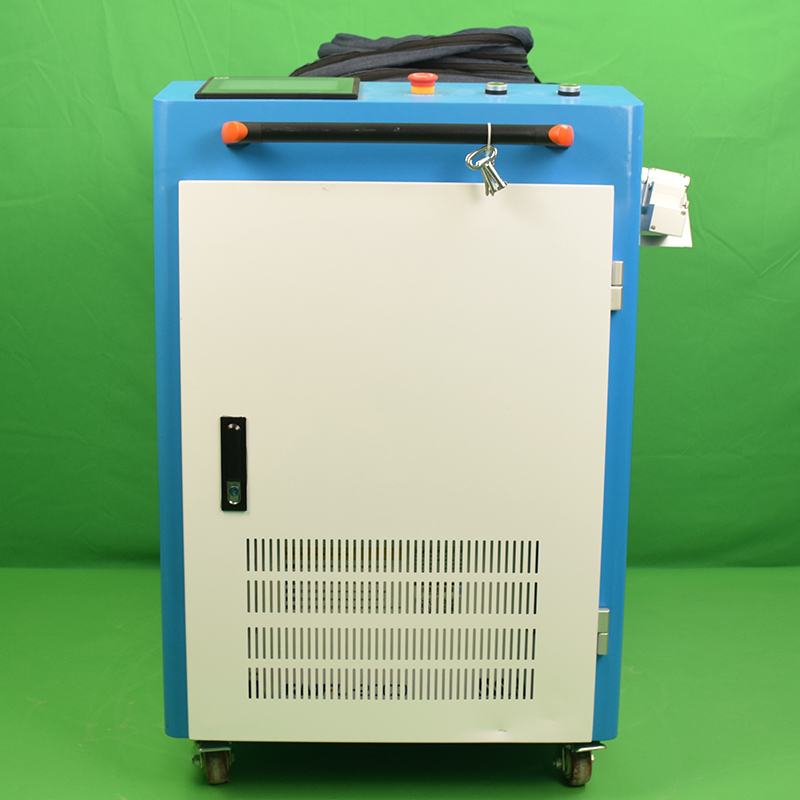

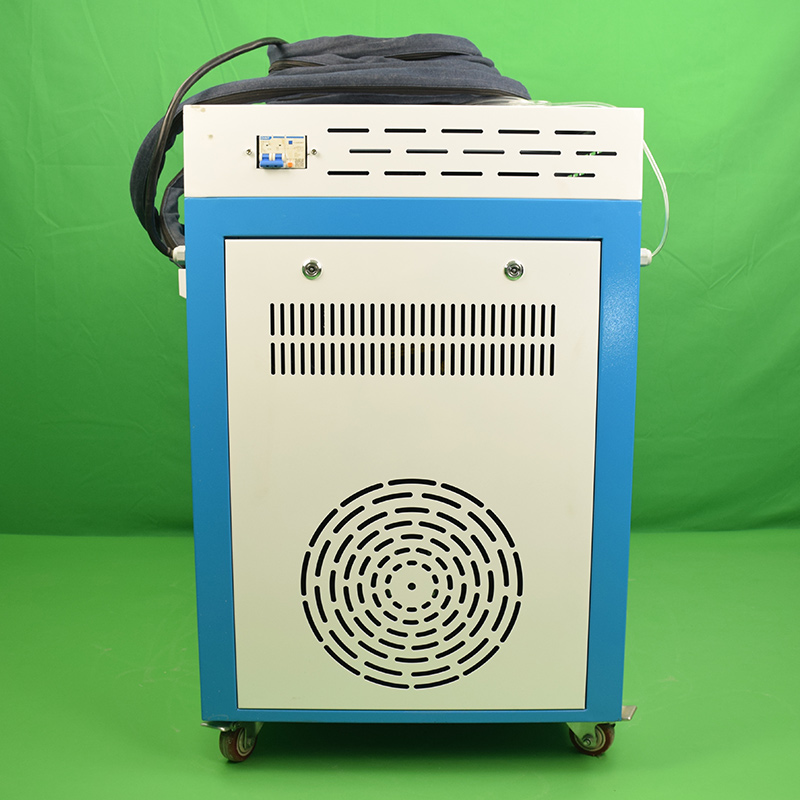

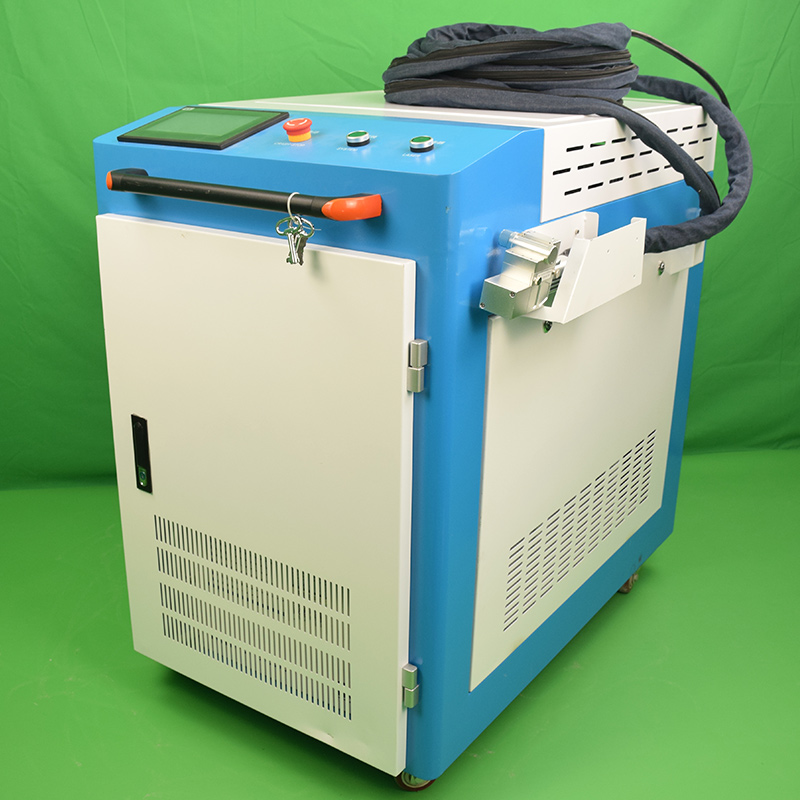

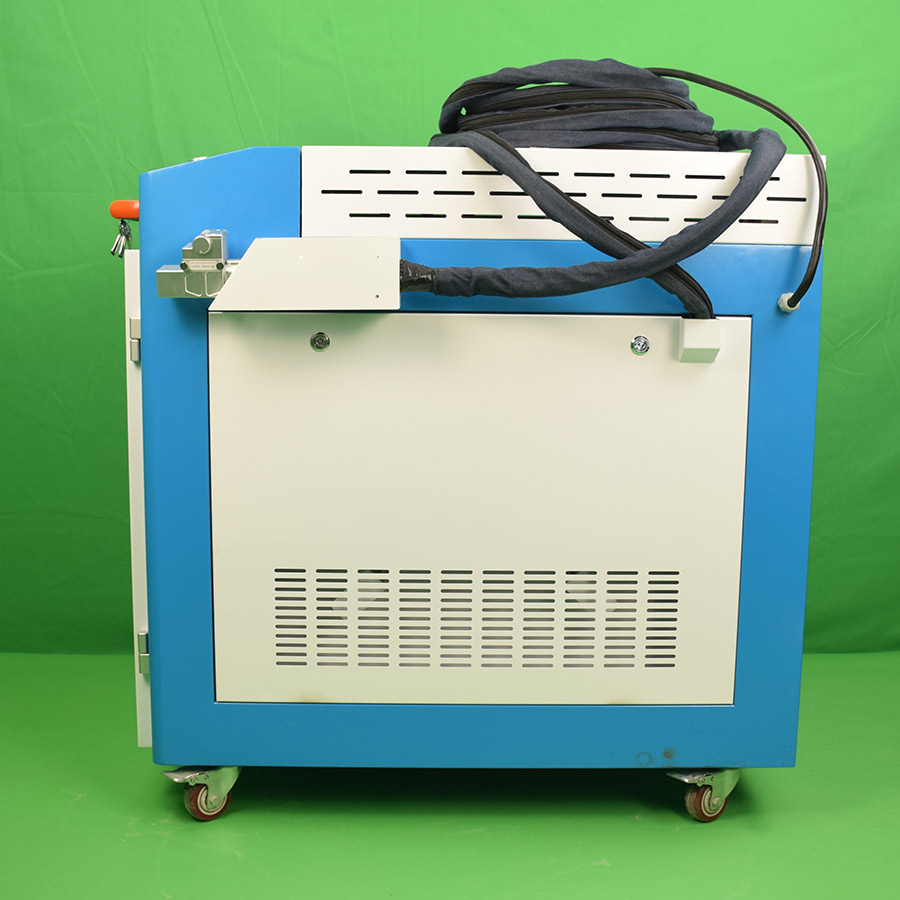

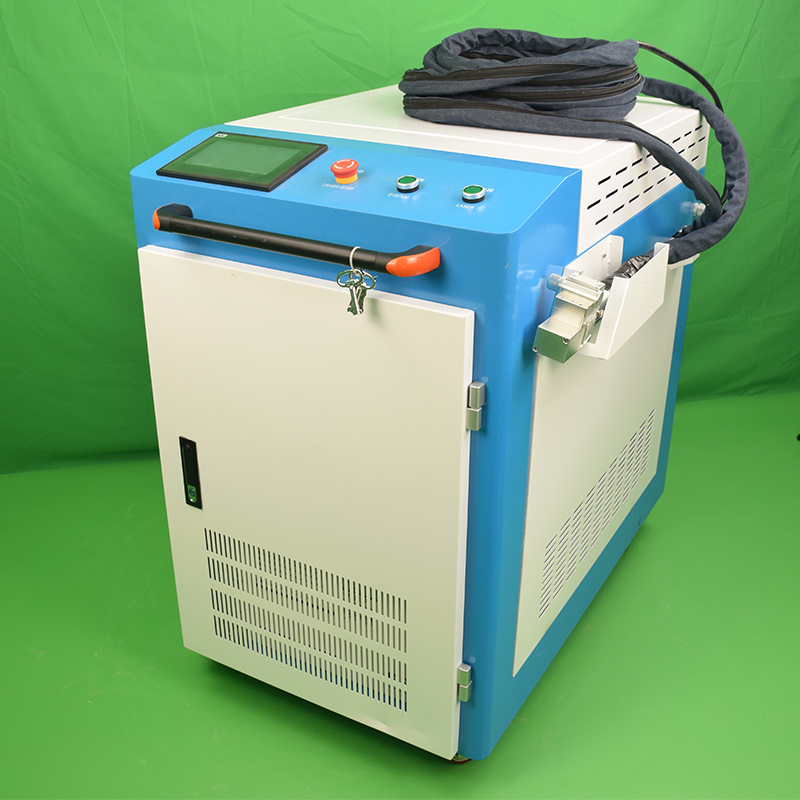

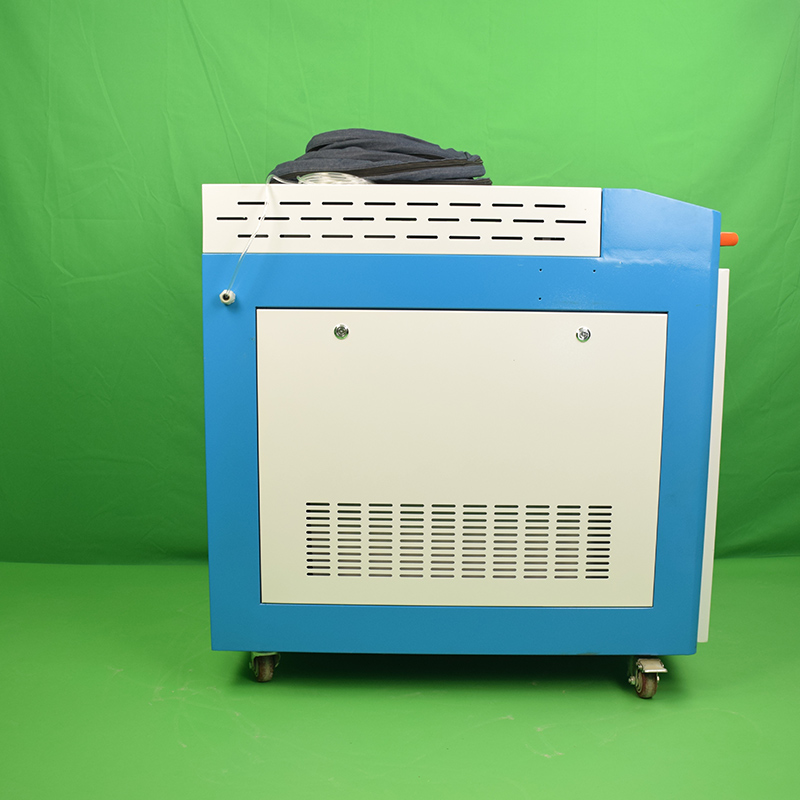

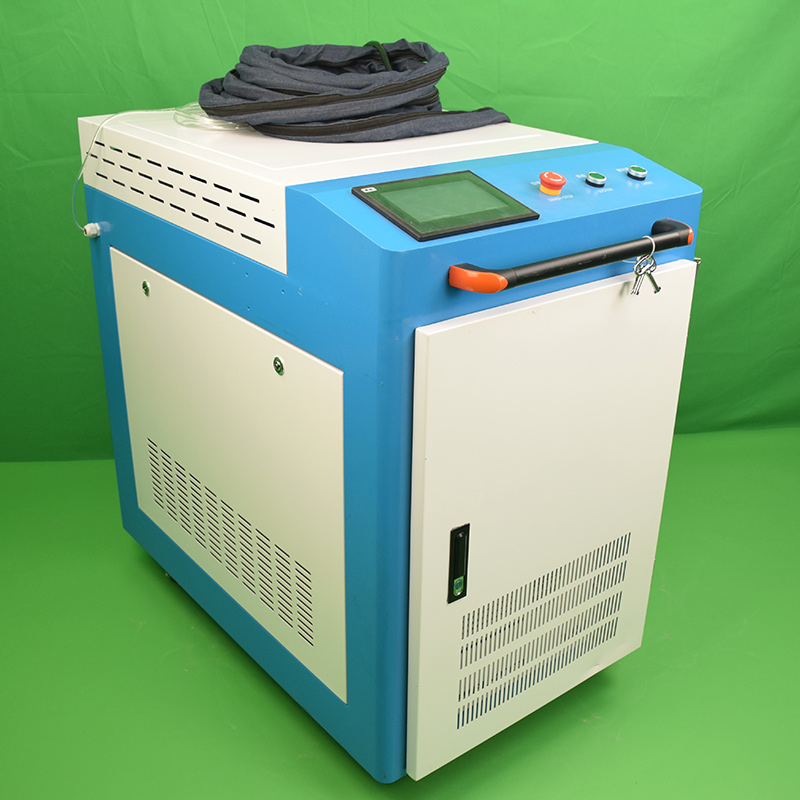

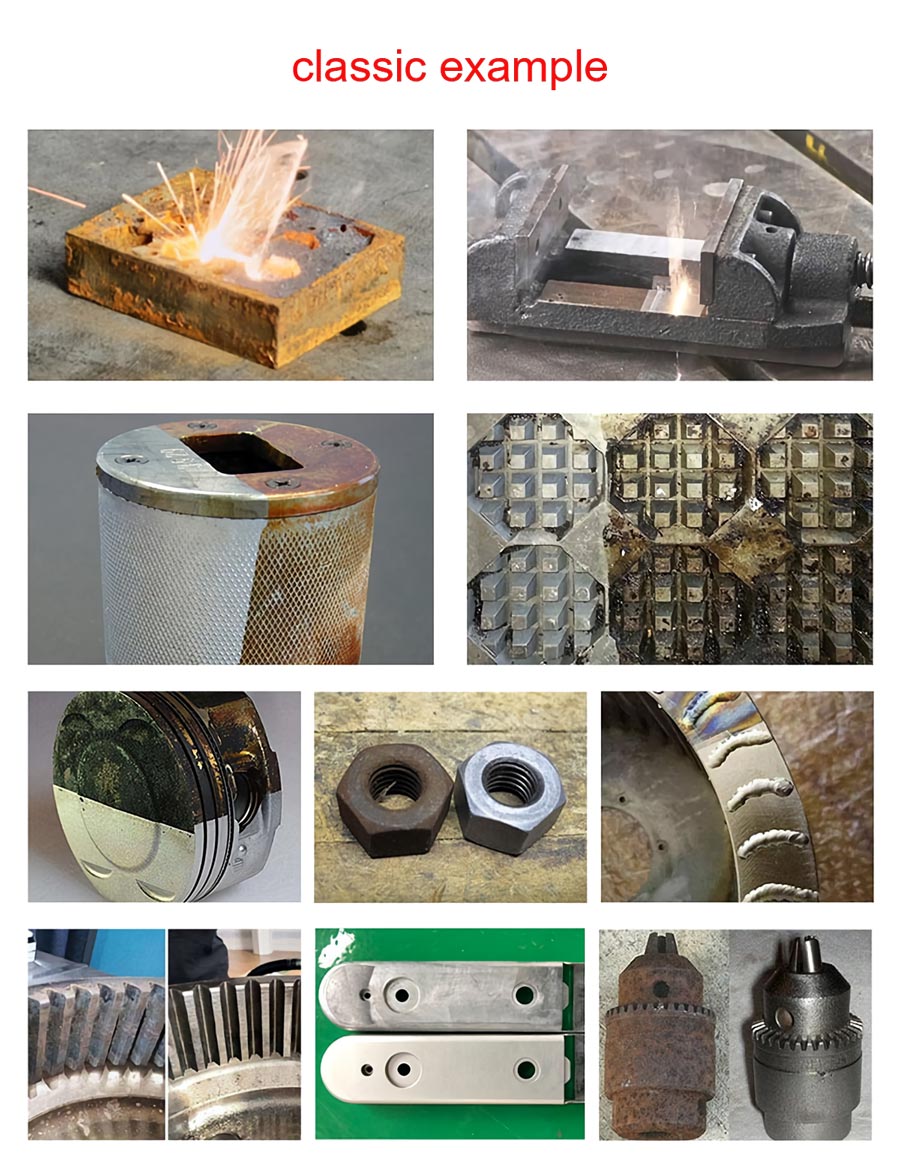

Sample Photos:
Product Parameter:
Model: | HLC-1500W | HLC-2000W | HLC-3000W（water cooling） |
Operational Voltage: | 220V±10%、50/60Hz | AC380V±7% | |
Temperature: | 5℃ ～40℃ | ||
Humidity: | 30-85% Non-Condensing | ||
Power dissipation： | ≤8KW | ≤10KW | ≤14.5KW |
Power Output: | 1500W | 2000W | 3000W |
Laser Type: | Fibre | ||
Output Power Instability: | ＜5% | ||
Wavelength: | 1080±10 nm | ||
Head Cable Length: | 10 m | 10 m | 20 m |
Cooling: | Water Cooling | ||
Adjustable width: | 0-300mm | 0-300mm | 0-300mm |
Scanning mode： | single axis | ||
Head Weight: | ≤0.9Kg | ≤1.25Kg | |
Size W x H x D: | About 845mm*460mm*605mm | About 905mm*480mm*630mm | About 1240mm*584mm*1148mm |
Box Dimensions | About 1120mm*565mm*1050mm | About 1120mm*565mm*1050mm | About 1430mm*720mm*1220mm |
Entire Unit Weight: | About 128Kg | About 155Kg | About 205Kg |
Packed weight： | About 166Kg | About 179Kg | About 230Kg |
Operation Mode: | Handheld/Automation | ||
Safety Class: | Level IV | ||
Application:

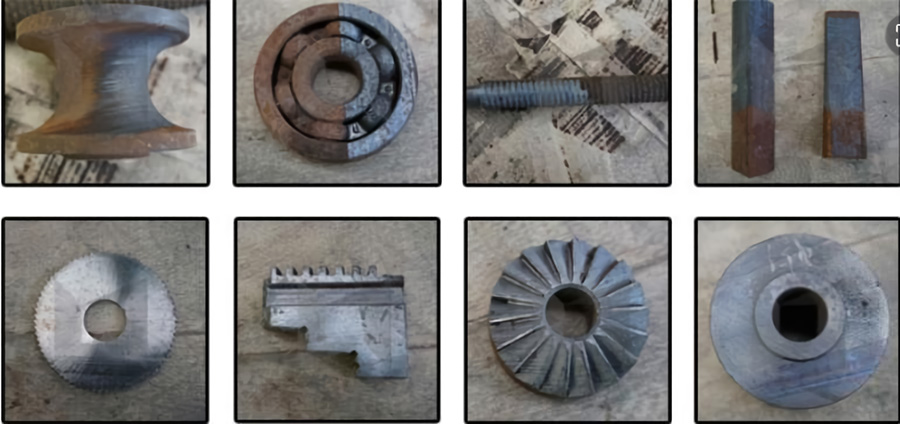

Use Cases:
